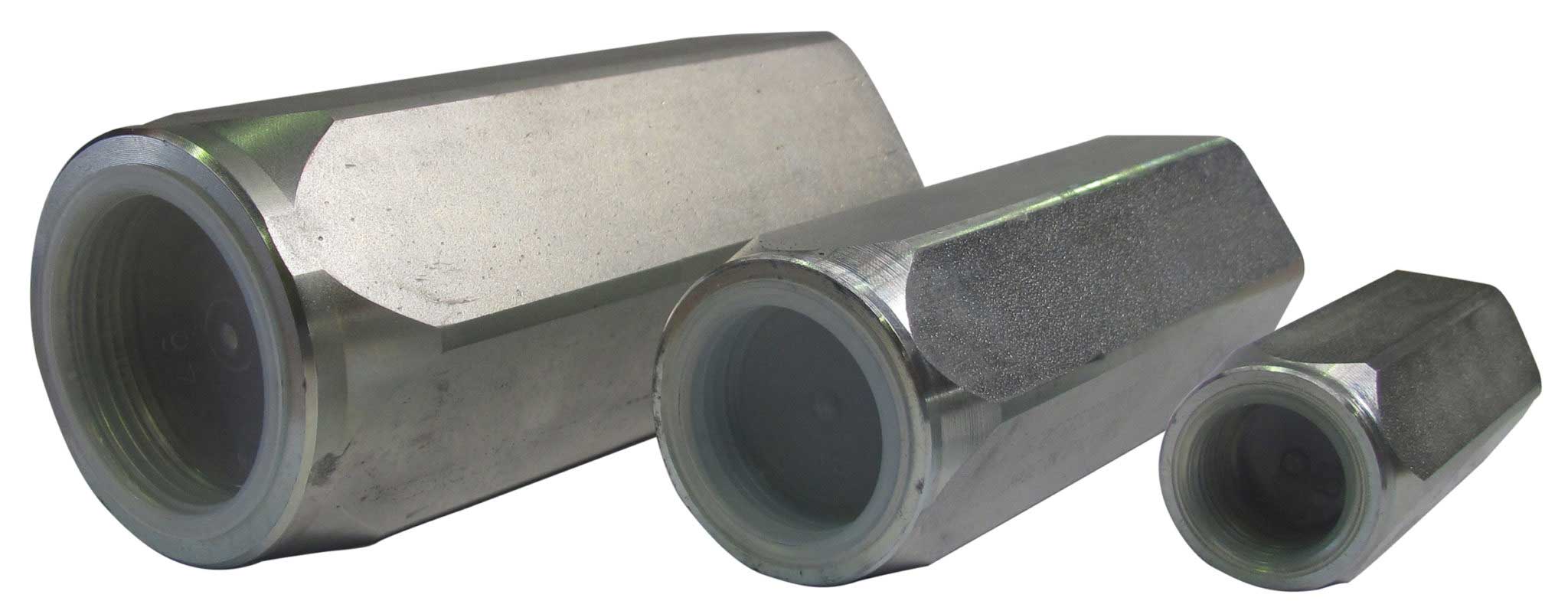

5 psi Cracking Pressure

The Hydraulic Warehouse
Sale!
TheHydraulicWarehouse_hires

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Part Number Port Size Max Flow (lpm) Max Pressure (bar) Cracking Pressure (psi) Weight – Unpacked (kg)
CV2A05 G1/4 30 500 5 0.1
CV3A05 G3/8 48 500 5 0.2
CV4A05 G1/2 70 500 5 0.35
CV6A05 G3/4 95 400 5 0.5
CV8A05 G1 150 350 5 0.7
CV10A05 G1-1/4 210 350 5 1.65
CV12A05 G1-1/2 320 350 5 4.2



Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • CV2A05

    Brand: The Hydraulic Warehouse
    List Price: $25.00 ex. GSTOur Price: $17.50 ex. GST
  • CV3A05

    Brand: The Hydraulic Warehouse
    List Price: $31.00 ex. GSTOur Price: $21.70 ex. GST
  • CV4A05

    Brand: The Hydraulic Warehouse
    List Price: $41.00 ex. GSTOur Price: $28.70 ex. GST
  • CV6A05

    Brand: The Hydraulic Warehouse
    List Price: $55.00 ex. GSTOur Price: $38.50 ex. GST
  • CV8A05

    Brand: The Hydraulic Warehouse
    List Price: $80.00 ex. GSTOur Price: $56.00 ex. GST
  • CV10A05

    Brand: The Hydraulic Warehouse
    List Price: $150.00 ex. GSTOur Price: $105.00 ex. GST
  • CV12A05

    Brand: The Hydraulic Warehouse
    List Price: $320.00 ex. GSTOur Price: $224.00 ex. GST
