Electronic Compensated Flow Control Valves

Brand Hydraulics
Sale!
Brand Hydraulics logo

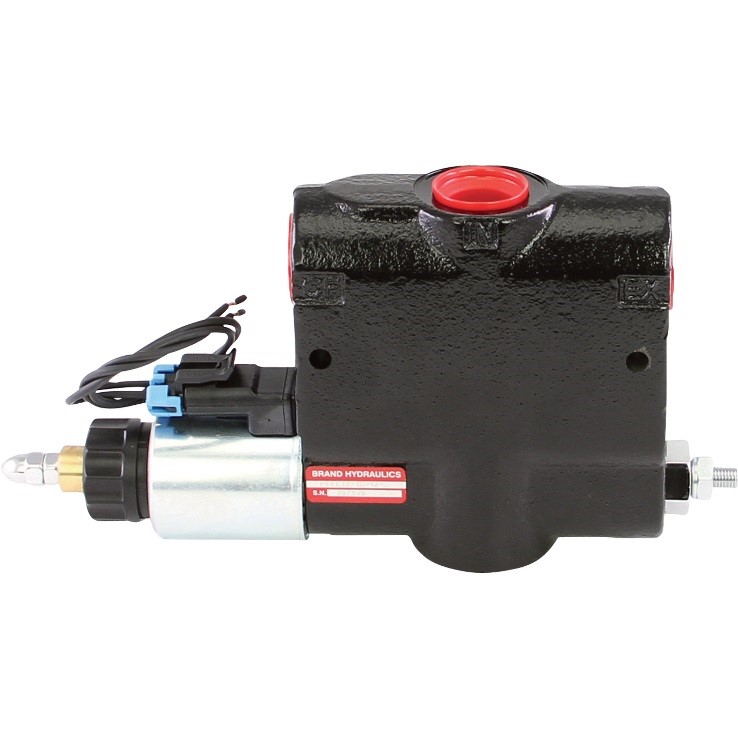

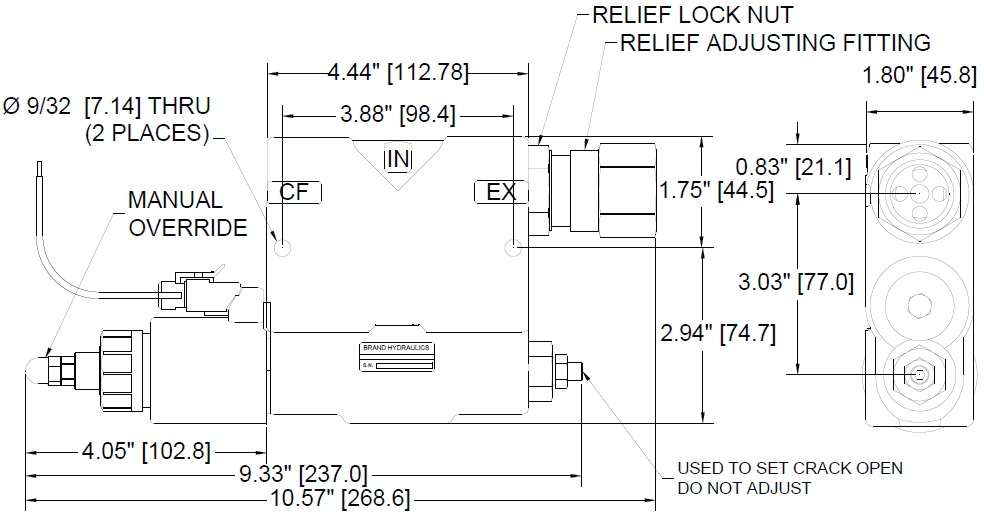

The Brand Hydraulics electronically adjustable proportional pressure compensated flow control is an electronically controlled version of the original FC51 style flow control valve. The valve performance as a flow control is similar for both the EFC and FC51 as they use the same spring and compensator spool, therefore, the control flow port (CF) and the excess flow port (EX) remain usable and pressure compensated. The EFC valve flow can be adjusted proportionally with a solenoid instead of manually.

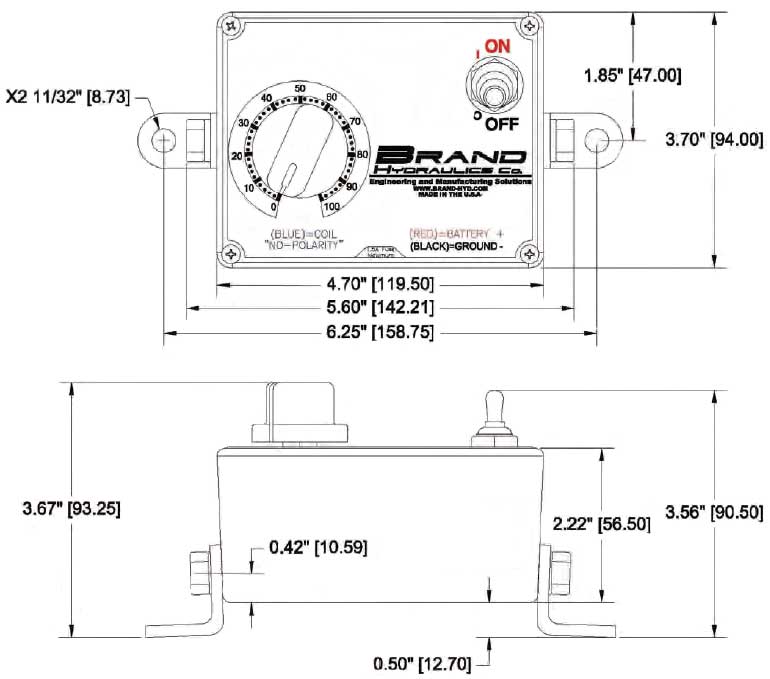

The Brand Hydraulics electronic control box is designed to proportionally adjust the EFC Series valves. The controller’s design makes it suitable for both outdoor and indoor environments, with weather proofing features to help it function in the elements. The controller is Pulse Width Modulated (PWM), which helps reduce the effects of hysteresis.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Electronic Adjustable Pressure Compensated Flow Control Valves

Part NumberPort SizeLPM (GPM)bar (psi)VoltData Sheet
EFC-12-25-12#12SAE25 (94.6)3000 (207)12Download
EFC-12-15-12#12SAE15 (56.8)3000 (207)12Download
EFC-12-20-12#12SAE20 (75.7)3000 (207)12Download
EFC-12-30-12#12SAE30 (114)3000 (207)12Download

Electronic Control Box

Part NumberSupply (VDC)Output (VDC)Data Sheet
EC-12-0112.70-18.0012Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • EC-12-01

    Brand: Brand Hydraulics
    List Price: $579.00 ex. GSTOur Price: $434.25 ex. GST
  • EFC-12-25-12

    Brand: Brand Hydraulics
    List Price: $720.00 ex. GSTOur Price: $540.00 ex. GST
  • EFC-12-20-12

    Brand: Brand Hydraulics
    List Price: $720.00 ex. GSTOur Price: $540.00 ex. GST
  • EFC-12-30-12

    Brand: Brand Hydraulics
    List Price: $720.00 ex. GSTOur Price: $540.00 ex. GST
