P2A0 SAE-A 2 Bolt Mount

The Hydraulic Warehouse
Sale!
TheHydraulicWarehouse_hires

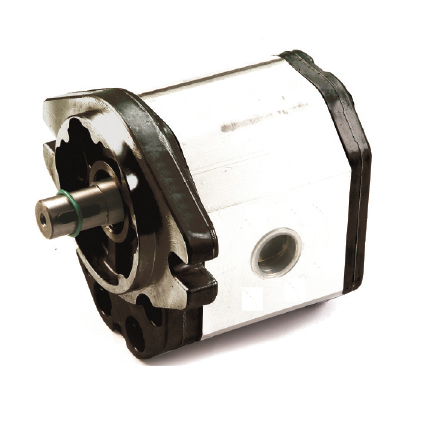

THW produce a range of hydraulic gear pumps, with a variety of shaft and mounting options.
With uses in applications such as agriculture, mining, industry and in mobile equipment, THW leverages off their extensive industry experience to provide cost effective gear pump solutions and parts to the Australian market.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

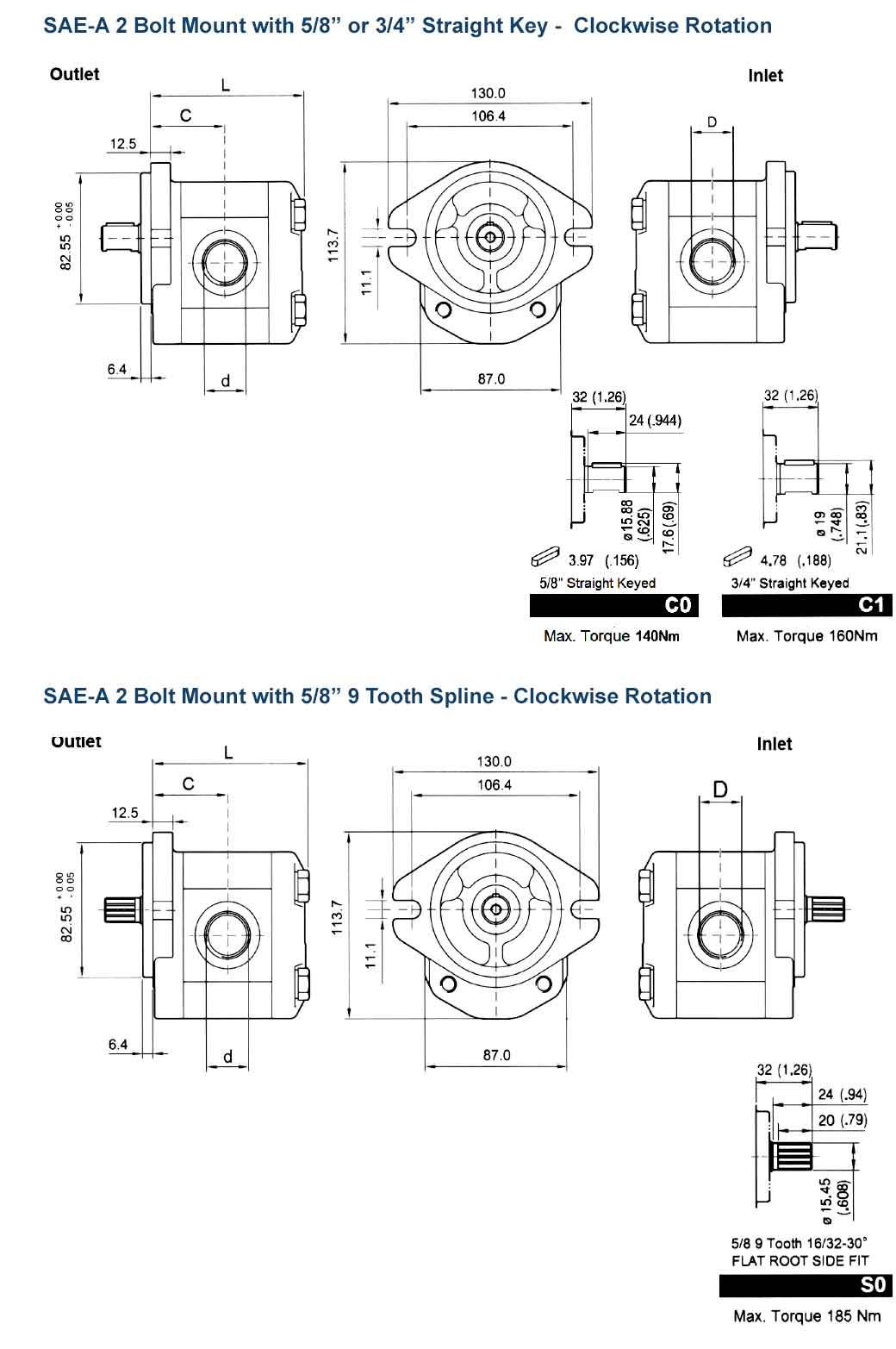

With 5/8” Straight Key – Clockwise Rotation

Part Number Displacement (cm³/rev) Continuous Pressure (bar) Intermittent Pressure (bar) Max Speed (rpm) Min Speed (rpm) Unpacked Weight (kg)
P2A0D4C0U 4 270 285 4000 600 3.7
P2A0D6C0U 6 270 285 4000 600 3.8
P2A0D8C0U 8 270 285 3500 500 3.9
P2A0D12C0U 12 270 285 3000 500 4.0
P2A0D16C0U 16 250 265 4000 500 4.3
P2A0D20C0U 20 220 235 3200 400 4.4
P2A0D25C0U 25 200 215 3000 400 4.7

With 3/4” Straight Key – Clockwise Rotation

Part Number Displacement (cm³/rev) Continuous Pressure (bar) Intermittent Pressure (bar) Max Speed (rpm) Min Speed (rpm) Unpacked Weight (kg)
P2A0D4C1U 4 270 285 4000 600 3.7
P2A0D6C1U 6 270 285 4000 600 3.8
P2A0D8C1U 8 270 285 3500 500 3.9
P2A0D12C1U 12 270 285 3000 500 4.0
P2A0D16C1U 16 250 265 4000 500 4.3
P2A0D20C1U 20 220 235 3200 400 4.4
P2A0D25C1U 25 200 215 3000 400 4.7

With 5/8” 9 Tooth Spline – Clockwise Rotation

Part Number Displacement (cm³/rev) Continuous Pressure (bar) Intermittent Pressure (bar) Max Speed (rpm) Min Speed (rpm) Unpacked Weight (kg)
P2A0D4S0U 4 270 285 4000 600 3.7
P2A0D6S0U 6 270 285 4000 600 3.8
P2A0D8S0U 8 270 285 3500 500 3.9
P2A0D12S0U 12 270 285 3000 500 4.0
P2A0D16S0U 16 250 265 4000 500 4.3
P2A0D20S0U 20 220 235 3200 400 4.4
P2A0D25S0U 25 200 215 3000 400 4.7

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • P2A0D6C1U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D12C1U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D20C1U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D25C1U

    Brand: The Hydraulic Warehouse
    List Price: $309.00 ex. GSTOur Price: $247.20 ex. GST
  • P2A0D4C1U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D6C0U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D8C0U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D25C0U

    Brand: The Hydraulic Warehouse
    List Price: $309.00 ex. GSTOur Price: $247.20 ex. GST
  • P2A0D20C0U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D16C1U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D16C0U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D4C0U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D4S0U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D6S0U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D8S0U

    Brand: The Hydraulic Warehouse
    List Price: $275.00 ex. GSTOur Price: $220.00 ex. GST
  • P2A0D12S0U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D16S0U

    Brand: The Hydraulic Warehouse
    List Price: $292.00 ex. GSTOur Price: $233.60 ex. GST
  • P2A0D25S0U

    Brand: The Hydraulic Warehouse
    List Price: $309.00 ex. GSTOur Price: $247.20 ex. GST
