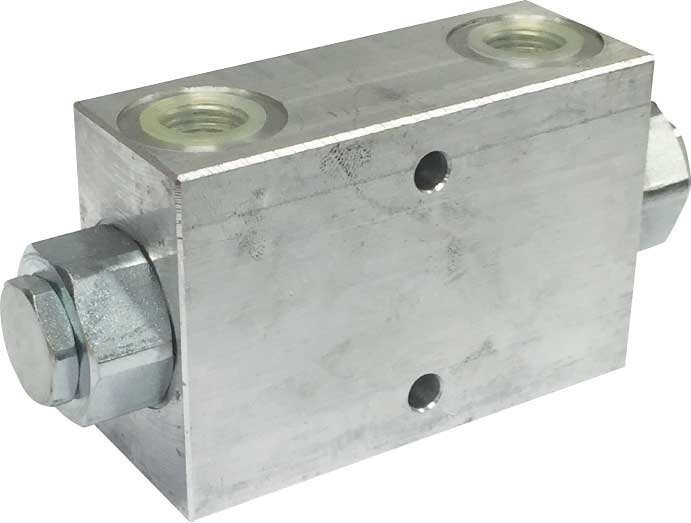

Pilot Operated Check Valves

Fluid-Press
Sale!
Pilot-Operated-Check-Valves
LOGO FLUID-PRESS

Fluid Press are an Italian manufacturer and distributor of a variety of valves including relief, sequence, check, flow control, solenoid and more. By constantly listening to customer needs and adapting products due to changing market demands, Fluid Press have been able to establish a sound range of valves suitable for the agricultural, industrial and construction industries.

  • Dimensions

    Dimensions

    FPD-L-3/8

    check-valves_dimensions_fpd-l-3-8

    Unit of measurement: mm



    FPD-L-1/2 and FPD-L-1/2-5

    check-valves_dimensions_fpd-l-1-2_fpd-l-1-2-5

    Unit of measurement: mm



    FPD-1/4

    check-valves_dimensions_fpd-1-4

    Unit of measurement: mm



    FPD-1/4-5

    check-valves_dimensions_fpd-1-4-5

    Unit of measurement: mm



Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Line Mounted, Double Pilot Operated Check Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPD-L-3/8 checkvalves_features_fpd-l-1-2-schematic 25 250 210 G3/8 1:7
FPD-L-1/2 45 250 210 G1/2 3.5:1
FPD-L-1/2-5 45 250 210 G1/2 3.5:1

Line Mounted, Double Pilot Operated Check Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes Pilot Ratio
FPD-1/4 fpd 12 350 350 G1/4 4:1
FPD-1/4-5 12 350 350 G1/4 4:1

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • FPD-1/4-5

    Brand: Fluid-Press
    List Price: $122.26 ex. GSTOur Price: $116.15 ex. GST

  • FPD-1/4

    Brand: Fluid-Press
    List Price: $117.59 ex. GSTOur Price: $111.71 ex. GST

  • FPD-L-1/2-5

    Brand: Fluid-Press
    List Price: $305.68 ex. GSTOur Price: $290.40 ex. GST

  • FPD-L-3/8

    Brand: Fluid-Press
    List Price: $274.40 ex. GSTOur Price: $260.68 ex. GST

  • FPD-L-1/2

    Brand: Fluid-Press
    List Price: $300.44 ex. GSTOur Price: $285.42 ex. GST
