Single Acting Cylinders
SPX Power Team Sale!

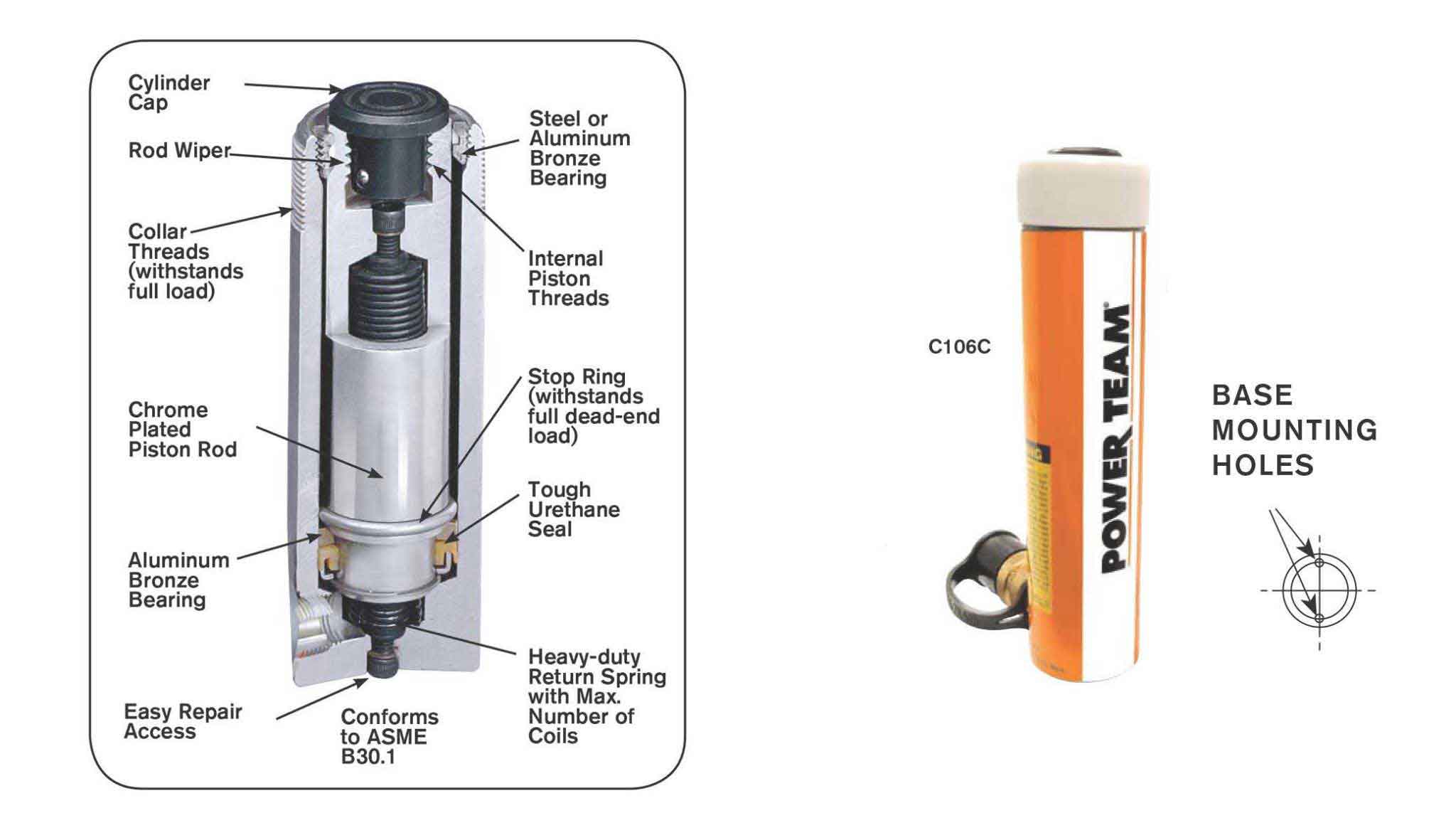

The C series is a general purpose, single acting high pressure hydraulic cylinder, ranging in sizes from 5-15 tonnage, able to support pressures up to 10,000 psi. Suitable for a variety of applications where high force is required.
- Features
- Dimensions

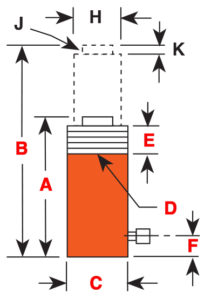

Dimensions
Capacity (Tons) Cyl Cap Stroke Tons (in.) Order No. Oil Cap (cu. in.) A B C D E F Internal Press. At Cap. (psi) Tons at 10,000 (psi) Prod. Wt. (kg.) Retracted Height (in.) Extended Height (in.) Outside Dia. (in.) Collar Thread (in.) Piston Collar Thread Length (in.) Base to Port (in.) 5 1 C51C 1.1 4 11/32 5 7/16 1 1/2 1 1/2-16 1 1/8 3/4 10,061 4.97 1.02 3 1/4 C53C 3.2 6 1/2 9 3/4 1 1/2 1 1/2-16 1 1/8 3/4 10,061 4.97 1.48 5 1/4 C55C 5.2 8 1/2 13 3/4 1 1/2 1 1/2-16 1 1/8 3/4 10,061 4.97 1.81 7 1/4 C57C 7.2 10 3/4 18 1 1/2 1 1/2-16 1 1/8 3/4 10,061 4.97 2.27 10 1 C101C 2.2 3 5/8 4 5/8 2 1/4 2 1/4-14 1 1/8 3/4 8,948 11.2 1.81 2 1/8 C102C 4.8 4 3/4 6 7/8 2 1/4 2 1/4-14 1 1/8 3/4 8,948 11.2 2.27 4 1/8 C104C 9.2 6 3/4 10 7/8 2 1/4 2 1/4-14 1 1/8 3/4 8,948 11.2 3.04 6 1/8 C106C 13.7 9 3/4 15 7/8 2 1/4 2 1/4-14 1 1/8 3/4 8,948 11.2 4.26 15 1 C151C 3.1 4 7/8 5 7/8 2 3/4 2 3/4-16 1 1/8 3/4 9,549 15.7 3.40 2 1/8 C152C 6.7 5 7/8 8 2 3/4 2 3/4-16 1 1/8 3/4 9,549 15.7 4.04 4 1/8 C154C 12.9 7 7/8 12 2 3/4 2 3/4-16 1 1/8 3/4 9,549 15.7 5.22 6 1/8 C156C 19.2 10 11/16 16 13/16 2 3/4 2 3/4-16 1 1/8 3/4 9,549 15.7 6.94
Ordering Guide
The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.
| Part no# | Capacity (Tons) | Stroke mm (Inches) |
| C51C | 5 ton cap cyl | 25.4mm (1″) |
| C53C | 5 ton cap cyl | 82.6mm (3.25″) |
| C55C | 5 ton cap cyl | 133.4 mm (5.25″) |
| C57C | 5 ton cap cyl | 184.2 mm (7.25″) |
| C101C | 10 ton cap cyl | 25.4mm (1″) |
| C102C | 10 ton cap cyl | 54mm (2.125″) |
| C104C | 10 ton cap cyl | 104.8 mm (4.125″) |
| C106C | 10 ton cap cyl | 155.6 mm (6.125″) |
| C151C | 15 ton cap cyl | 25.4mm (1″) |
| C152C | 15 ton cap cyl | 54mm (2.125″) |
| C154C | 15 ton cap cyl | 104.8 mm (4.125″) |
| C156C | 15 ton cap cyl | 155.6 mm (6.125″) |
Place your Order
To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.
