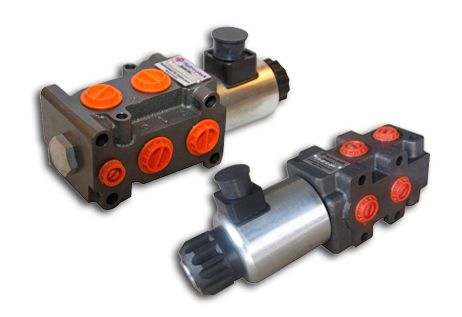

The Hydraulic Warehouse’s Solenoid Operated Selector Valves come in both 12VDC and 24VDC. These valves come with a nominal flow of either 50LPM or 90LPM and have a maximum pressure of 315 bar.

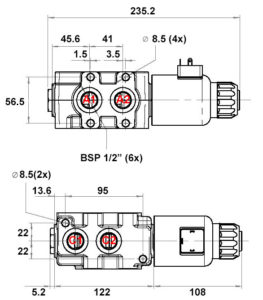

DVS6 – 50LPM, 6 Port Selector Valve in either 12VDC or 24VDCSVV-90 – 90LPM, 6 Port Selector Valve in either 12VDC or 24VDC Unit of measurement: mm
din plug shown for illustration purposes only - not supplied with valve.
Ordering Guide
The ordering guide below provides technical specifications
to assist you with your selection. When you are ready to order,
simply scroll down to the 'Place your Order' section below the Ordering
Guide or click on a part number in the Ordering Guide table.
DVS6 – 50LPM, 6 Port Selector Valve in either 12VDC or 24VDC
Part Number
Coil Voltage
Nominal Flow
Thread
DVS6-L-12DC-G38-02
12VDC
50LPM
3/8" BSP
DVS6-L-24DC-G38-02
24VDC
50LPM
3/8" BSP
SVV-90 – 90LPM, 6 Port Selector Valve in either 12VDC or 24VDC
Part Number
Coil Voltage
Nominal Flow
Thread
SVV-90-G-12V
12VDC
90LPM
1/2" BSP
SVV-90-G-24V
24VDC
90LPM
1/2" BSP
Spares/Accessories
Part Number
Coil Voltage
Coil to Suit
DVS.COIL/12VDC
12VDC
DVS6 Valve
DVS.COIL/24VDC
24VDC
DVS6 Valve
SVV90.COIL/12VDC
12VDC
SVV90 Valve
SVV90.COIL/24VDC
24VDC
SVV90 Valve
Place your Order
To make a purchase, simply scroll down to your desired part number, enter your order quantity
in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.
DVS6-L-12DC-G38-02
Brand: The Hydraulic Warehouse
List Price: $278.00 ex. GSTOur Price: $222.40 ex. GST
DVS6-L-24DC-G38-02
Brand: The Hydraulic Warehouse
List Price: $278.00 ex. GSTOur Price: $222.40 ex. GST
SVV-90-G-12V
Brand: The Hydraulic Warehouse
List Price: $372.00 ex. GSTOur Price: $241.80 ex. GST
SVV-90-G-24V
Brand: The Hydraulic Warehouse
List Price: $372.00 ex. GSTOur Price: $241.80 ex. GST
DVS.COIL/12VDC
Brand: The Hydraulic Warehouse
List Price: $85.00 ex. GSTOur Price: $68.00 ex. GST
DVS.COIL/24VDC
Brand: The Hydraulic Warehouse
List Price: $85.00 ex. GSTOur Price: $68.00 ex. GST
SVV90.COIL/12VDC
Brand: The Hydraulic Warehouse
List Price: $160.00 ex. GSTOur Price: $128.00 ex. GST
SVV90.COIL/24VDC
Brand: The Hydraulic Warehouse
List Price: $160.00 ex. GSTOur Price: $128.00 ex. GST
