V20 Vane Pumps

Eaton Vickers
Sale!
Eaton Vickers Logo

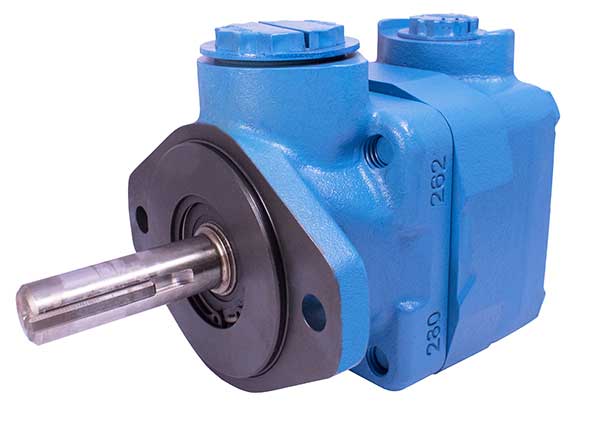

The Eaton Vickers V20 Vane Pumps are an ideal pump for medium to low-pressure mobile and industrial applications. Its specially designed inlet flow path and compact design gives it uniform oil acceleration and high speed capability.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Part number greyed-out? This means it has temporarily sold out, and will be available again soon. To request an ETA or to order in advance, please contact us on 1800 660 249.

Part Number Model Code US gpm at 1200 rpm, 7 bar Displacement
cc/rev
(Cu.in/rev)
Shaft Type Maximum
Speed
(rpm)
Maximum
Pressure
bar (psi)
Mounting
02-318882-6 V20F-1S8S-38B-5J-22L 8 26.6 (1.62) Splined 11 Tooth 2800 175 (2500) SAE-A 2
Bolt
358358-3 V20-1S11S-1C-11 11 36.4 (2.22) 3/4″ Straight Keyed 2500 175 (2500) SAE-A 2
Bolt
372561-3 V20-1S13S-1C-11 13 42.4 (2.59) 3/4″ Straight Keyed 2400 155 (2200) SAE-A 2
Bolt
372564-3 V20-1S8S-1C-11 8 26.5 (1.62) 3/4″ Straight Keyed 2800 175 (2500) SAE-A 2
Bolt
372585-3 V20-1S6S-1C-11 6 19.5 (1.19) 3/4″ Straight Keyed 3400 175 (2500) SAE-A 2
Bolt
372586-3 V20-1S9S-1C-11 9 29.6 (1.81) 3/4″ Straight Keyed 2800 175 (2500) SAE-A 2
Bolt

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • 02-318882-6

    Brand: Eaton Vickers
    List Price: $1980.00 ex. GSTOur Price: $1485.00 ex. GST
  • 358358-3

    Brand: Eaton Vickers
    List Price: $1557.00 ex. GSTOur Price: $1167.75 ex. GST
  • 372585-3

    Brand: Eaton Vickers
    List Price: $1557.00 ex. GSTOur Price: $1167.75 ex. GST
