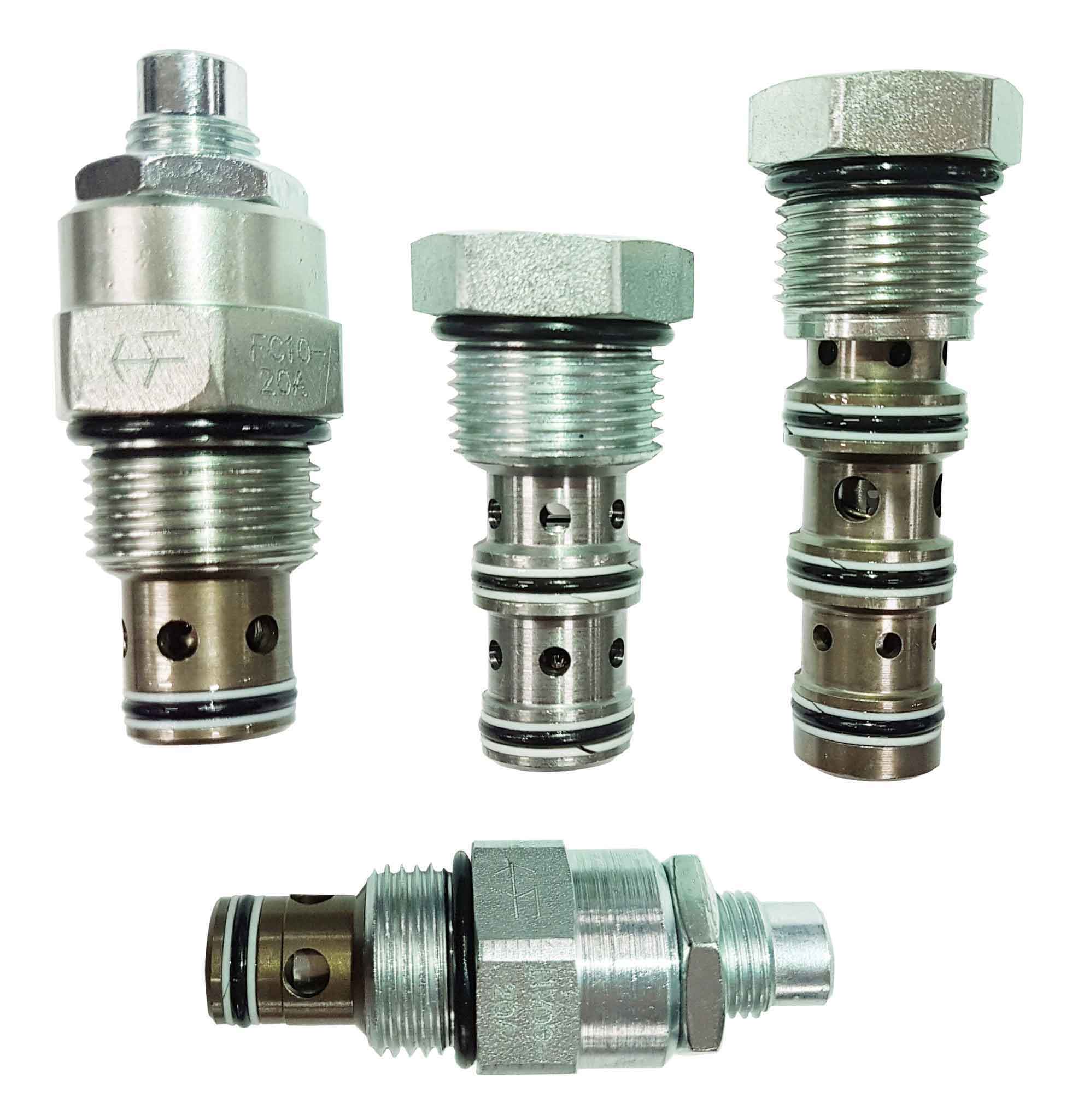

Check Valves

HydraForce
Sale!
HF_Power Forward Logo

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Guided Ball Type

Part NumberSchematic Flow Rate (L/min)Cavity/Port Size Cracking Pressure (bar)Data Sheet
CV04-20-0-N-05 CV04-(B)205VC04-20.34Download
CV08-20-0-N-0430VC08-20.34Download
CV08-20-0-N-6030VC08-24.1Download
CV10-20-0-N-0576VC10-20.34Download
CV10-20-0-N-3076VC10-22.1Download
CV10-20-0-N-10076VC10-26.9Download
CV12-20-0-N-2595VC12-21.7Download
CV12-20-0-N-6095VC12-24.1Download
CV16-20-0-N-05151VC16-20.34Download

Reverse Flow Direction

Part NumberSchematic Flow Rate (L/min)Cavity/Port Size Cracking Pressure (bar)Data Sheet
CV08-21-0-N-30 CV10-2430VC08-22.07Download
CV12-21-0-N-06114VC12-20.4Download
CV10-23-0-N-0549VC10-20.34Download
CV10-23-0-N-5549VC10-23.8Download

Pilot Operated – Pilot to Open

Part NumberSchematic Flow Rate (L/min)Cavity/Port Size Cracking Pressure (bar)Data Sheet
PC08-30-0-N   PC08-3018VC08-31.72Download
PC08-30-0-NS-9018VC08-36.2Download
PC10-30-0-N22VC10-32.07Download

Double Pilot Operated

Part NumberSchematic Flow Rate (L/min)Cavity/Port Size Cracking Pressure (bar)Data Sheet
DCV08-6T-N DCV08229/16″ UNO1.7Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • CV12-20-0-N-25

    Brand: HydraForce
    List Price: $105.00 ex. GSTOur Price: $73.50 ex. GST
  • CV12-20-0-N-60

    Brand: HydraForce
    List Price: $105.00 ex. GSTOur Price: $73.50 ex. GST
  • CV16-20-0-N-05

    Brand: HydraForce
    List Price: $134.00 ex. GSTOur Price: $93.80 ex. GST
  • CV12-21-0-N-06

    Brand: HydraForce
    List Price: $149.00 ex. GSTOur Price: $104.30 ex. GST
  • CV10-23-0-N-05

    Brand: HydraForce
    List Price: $86.00 ex. GSTOur Price: $60.20 ex. GST
  • CV10-23-0-N-55

    Brand: HydraForce
    List Price: $86.00 ex. GSTOur Price: $60.20 ex. GST
  • PC08-30-0-N

    Brand: HydraForce
    List Price: $97.00 ex. GSTOur Price: $67.90 ex. GST
  • PC08-30-0-NS-90

    Brand: HydraForce
    List Price: $101.00 ex. GSTOur Price: $70.70 ex. GST
  • PC10-30-0-N

    Brand: HydraForce
    List Price: $105.00 ex. GSTOur Price: $73.50 ex. GST
  • DCV08-6T-N

    Brand: HydraForce
    List Price: $282.00 ex. GSTOur Price: $197.40 ex. GST
  • CV08-20-0-N-60

    Brand: HydraForce
    List Price: $41.00 ex. GSTOur Price: $28.70 ex. GST
  • CV10-20-0-N-05

    Brand: HydraForce
    List Price: $48.00 ex. GSTOur Price: $33.60 ex. GST
  • CV10-20-0-N-30

    Brand: HydraForce
    List Price: $48.00 ex. GSTOur Price: $33.60 ex. GST
