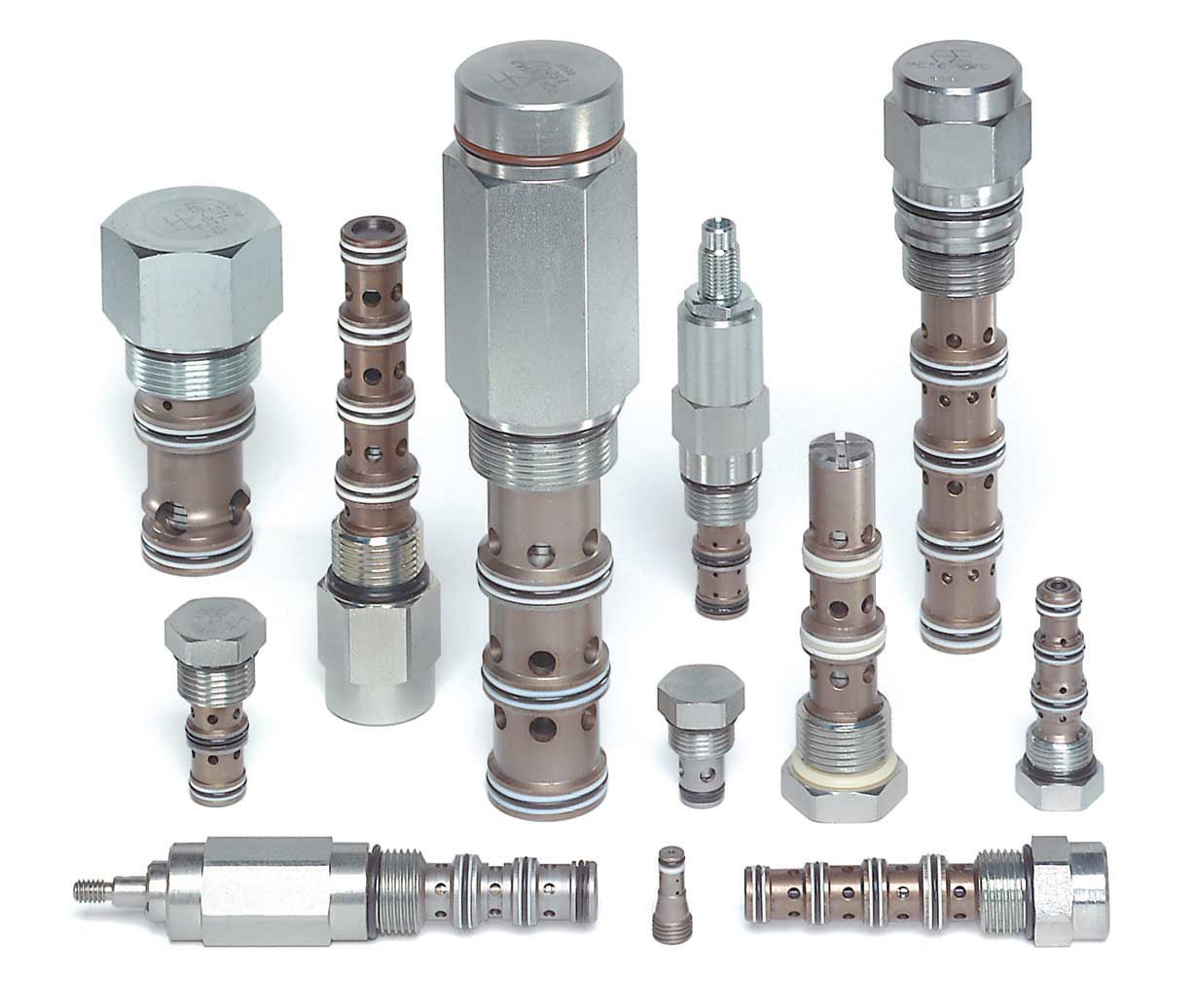

Directional Valves

HydraForce
Sale!
HF_Power Forward Logo

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Pilot Two Way Spool – Normally Open, External Drain

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

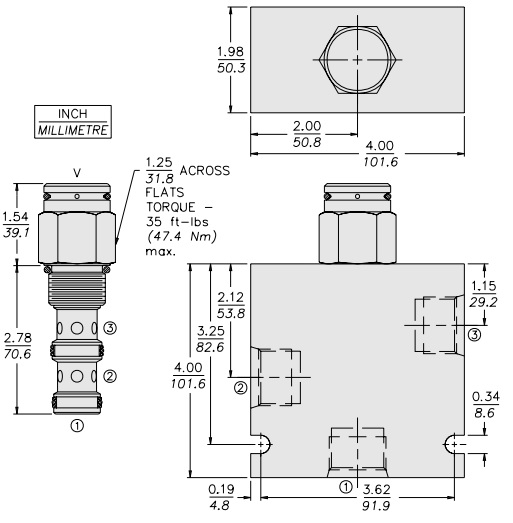

PD12-30-0-N-110 pd12-30-0-n-110 114 VC12-3 7.6 Download

Pilot Two Way Spool – Normally Closed, External Drain

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

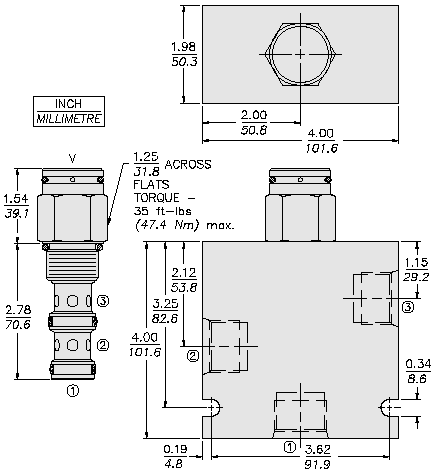

PD12-34-0-N-110 pd12-34-0-n-110 114 VC12-3 7.6 Download

Pilot Three Way Spool – External Drain

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

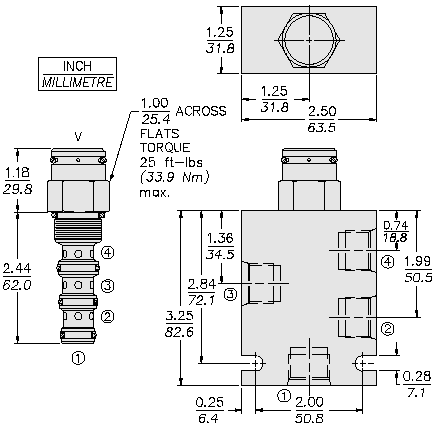

PD10-40-0-NS-110 PD10-40 30 VC10-4 7.6 Download

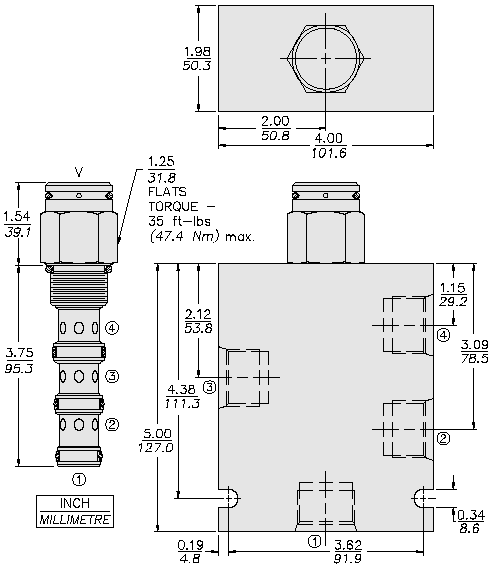

PD12-40-0-NS-110 114 VC12-4 7.6 Download

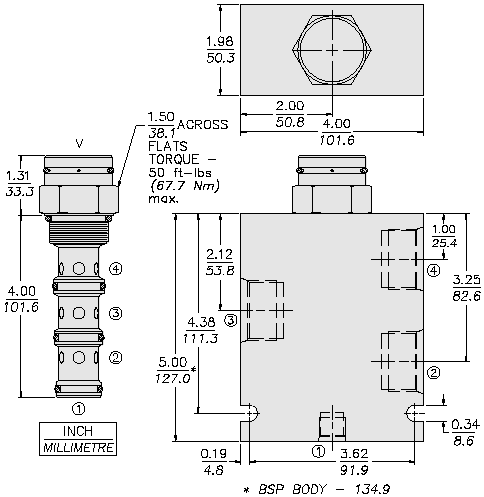

PD16-40-0-N-110 170 VC16-4 7.6 Download

Pilot Three Way Spool – Internal Drain

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

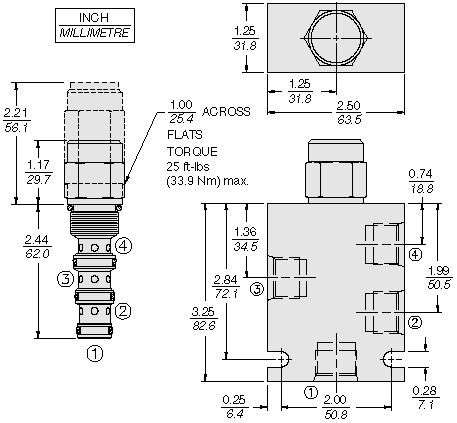

PD10-41-0-N-110 PD10-41 - Copy 45 VC10-4 7.6 Download

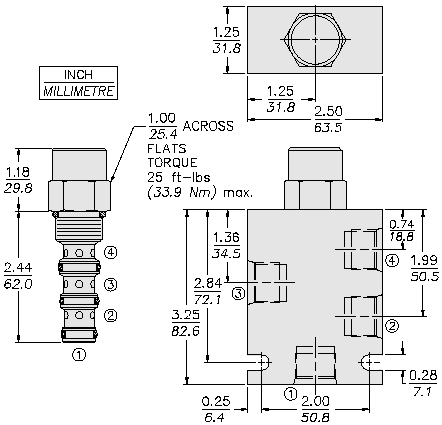

PD10-42-0-NS-110 PD10-42 - Copy 38 VC10-4 7.6 Download

Pilot Two Way Spool – Ported Drain

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

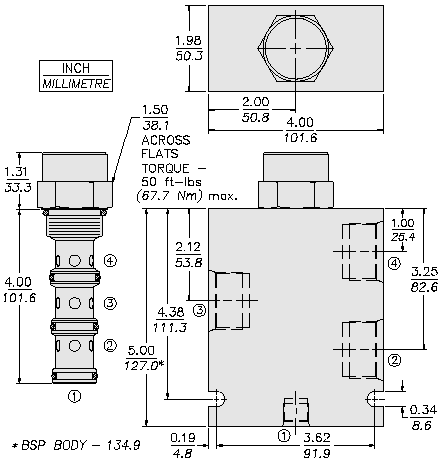

PD16-44-0-N-170 pd16-44-0-n-170 170 VC16-4 11.7 Download

Drained Spool Type – Logic Element

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

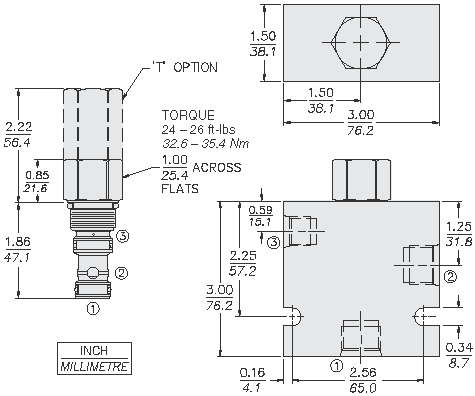

EV10-S34-0-N-110  ev10-s34-0-n-110 76 VC10-S3 7.6 Download

Manual Valve – Pull to Shift – Spring Return

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

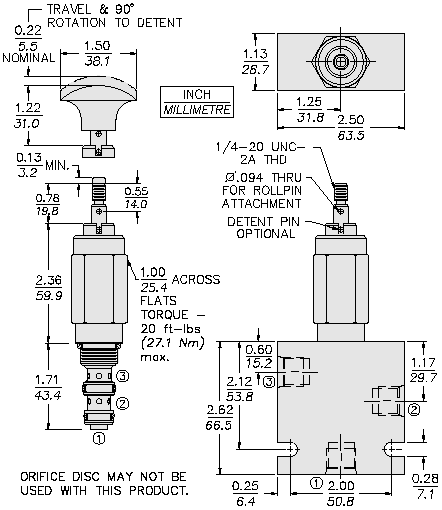

MP08-30D-0-N MP08-30 - Copy 25 VC08-3 Black Plastic Knob  Download

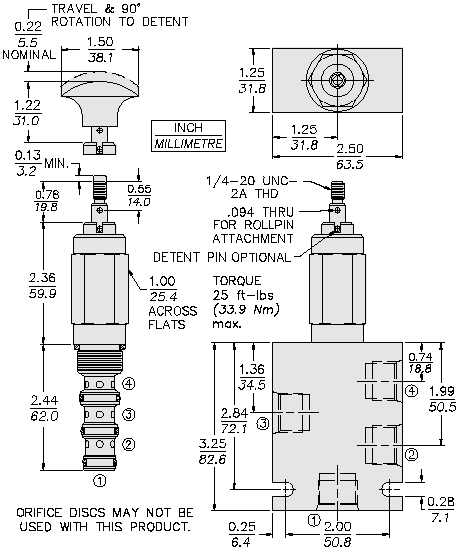

MP10-42J-0-N MP10-42 - Copy 33 VC10-4  Red Plastic Knob  Download
MP10-42K-0-N 33 VC10-4  Black Plastic Knob  Download

Rotary Flow Control

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Cracking Pressure (bar) Data Sheet

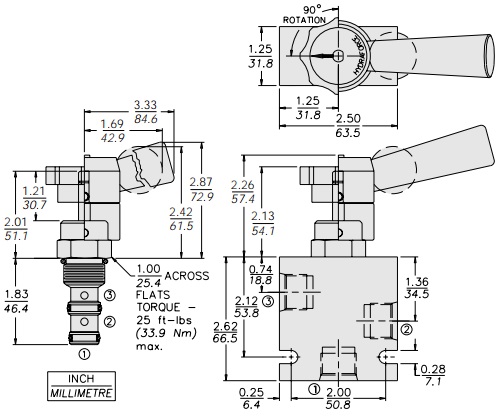

MR10-31-0-N MR10-31 - Copy 26.5 VC10-3  Handle Not Included  Download

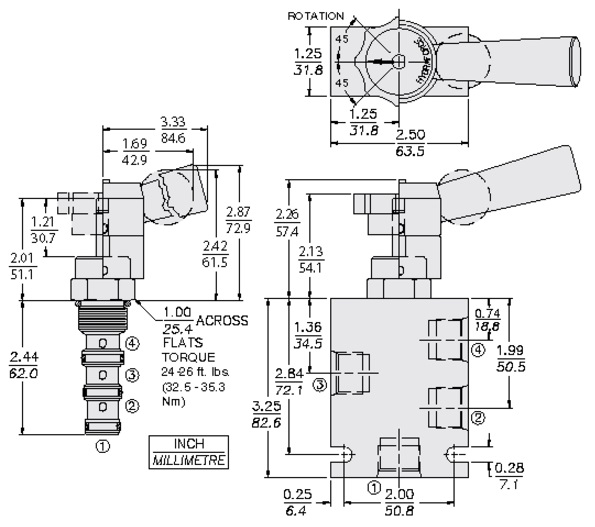

MR10-47D-0-N mr10-47D_220517 23 VC10-4 No Handle  Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • PD12-30-0-N-110

    Brand: HydraForce
    List Price: $208.00 ex. GSTOur Price: $145.60 ex. GST
  • PD12-34-0-N-110

    Brand: HydraForce
    List Price: $208.00 ex. GSTOur Price: $145.60 ex. GST
  • PD10-40-0-NS-110

    Brand: HydraForce
    List Price: $160.00 ex. GSTOur Price: $112.00 ex. GST
  • PD12-40-0-NS-110

    Brand: HydraForce
    List Price: $249.00 ex. GSTOur Price: $174.30 ex. GST
  • PD16-40-0-N-110

    Brand: HydraForce
    List Price: $286.00 ex. GSTOur Price: $200.20 ex. GST
  • PD10-41-0-N-110

    Brand: HydraForce
    List Price: $157.00 ex. GSTOur Price: $109.90 ex. GST
  • PD10-42-0-NS-110

    Brand: HydraForce
    List Price: $161.00 ex. GSTOur Price: $112.70 ex. GST
  • PD16-44-0-N-170

    Brand: HydraForce
    List Price: $280.00 ex. GSTOur Price: $196.00 ex. GST
  • EV10-S34-0-N-110

    Brand: HydraForce
    List Price: $140.00 ex. GSTOur Price: $98.00 ex. GST
  • MP08-30D-0-N

    Brand: HydraForce
    List Price: $191.00 ex. GSTOur Price: $133.70 ex. GST
  • MP10-42J-0-N

    Brand: HydraForce
    List Price: $226.00 ex. GSTOur Price: $158.20 ex. GST
  • MP10-42K-0-N

    Brand: HydraForce
    List Price: $224.00 ex. GSTOur Price: $156.80 ex. GST
  • MR10-31-0-N

    Brand: HydraForce
    List Price: $199.00 ex. GSTOur Price: $139.30 ex. GST
  • MR10-47D-0-N

    Brand: HydraForce
    List Price: $294.00 ex. GSTOur Price: $205.80 ex. GST
