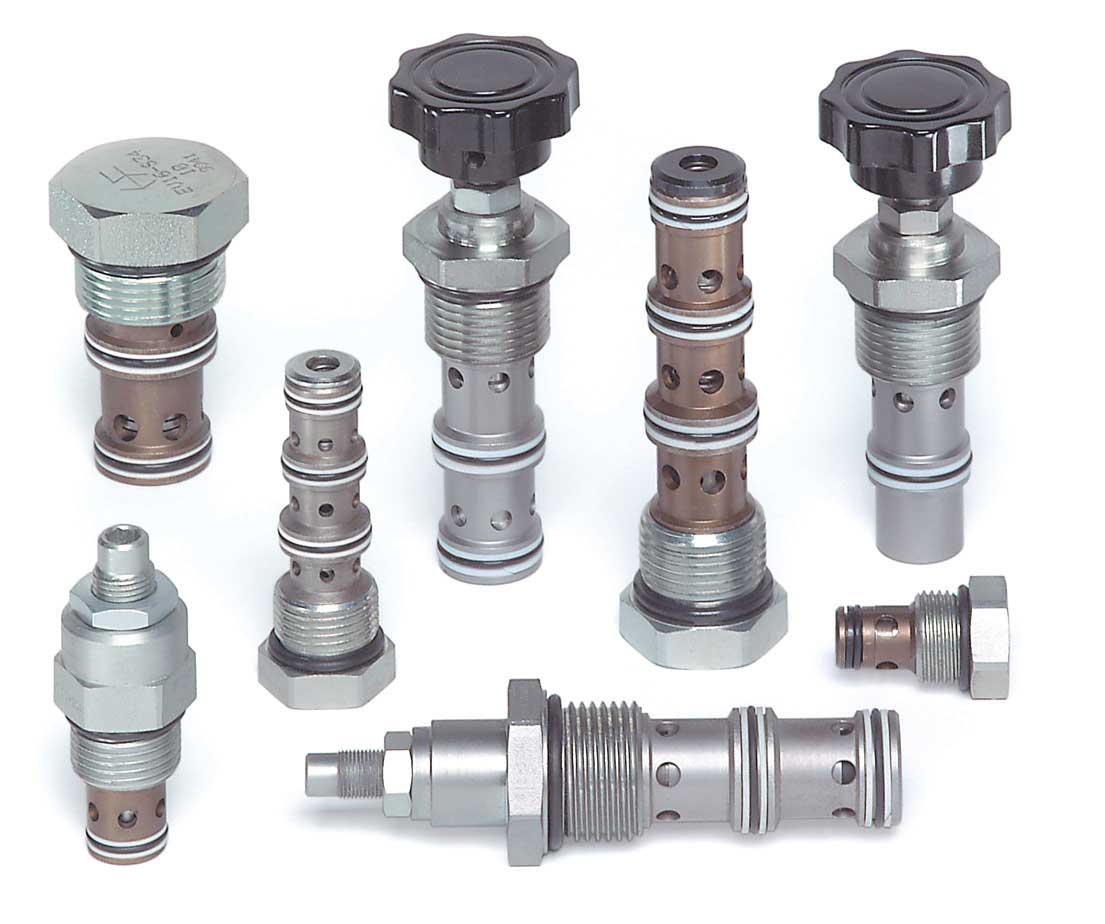

Flow Control Valves

HydraForce
Sale!
HF_Power Forward Logo

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

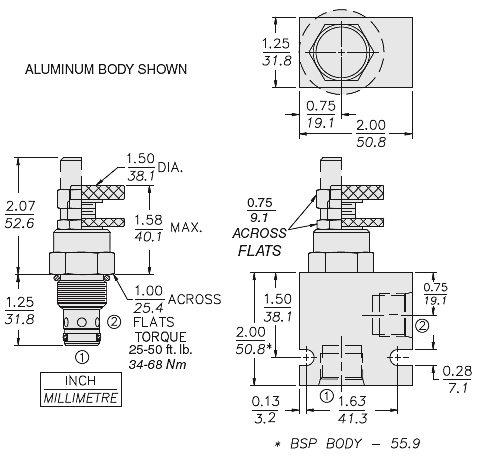

Needle Valve

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Adjustment Type / Flow Setting Data Sheet

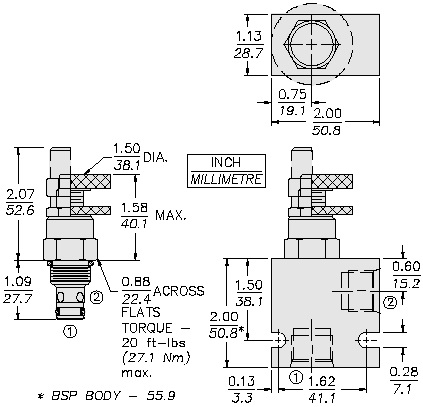

NV08-20A-0-N NV08-20 42 VC08-2 Allen Key Download
NV10-20A-0-N 56 VC010-2 Allen Key Download
NV12-20A-0-N 129 VC12-2 Allen Key Download

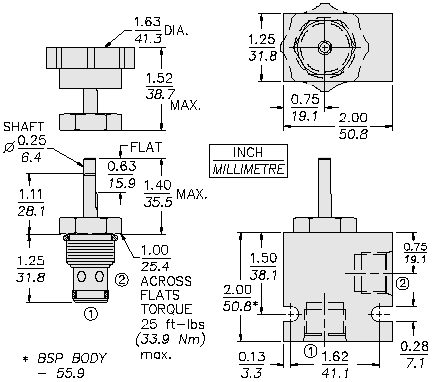

Needle Valve – Fine Adjustment

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Adjustment Type / Flow Setting Data Sheet
NV10-21E-0-N NV08-20 56 VC10-2 Plastic Knob Download
NV10-21T-0-N 56 VC10-2 No Handle Download

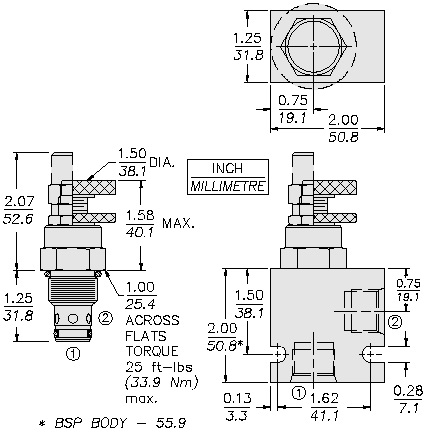

Flow Control – Reverse Free Flow

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Adjustment Type / Flow Setting Data Sheet
FC10-20A-0-N FC10-20 45 VC10-2 Allen Key Download

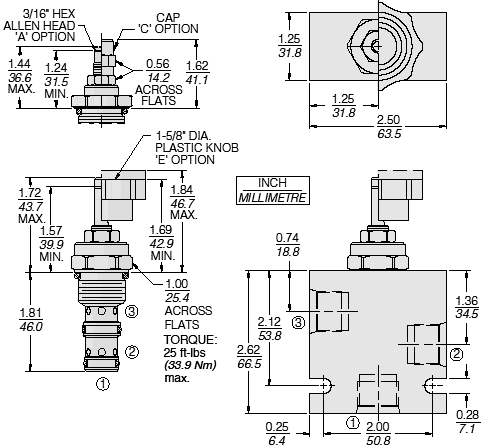

Flow Regulator – Pressure Compensated

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Adjustment Type / Flow Setting Data Sheet
FR10-33A-0-N FR10-33_Symbol - Copy 13 VC10-3 Allen Key Download

Flow Divider / Combiner

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Adjustment Type / Flow Setting Data Sheet
FD50-45-0-N-33 fd50-45-0-n-33 45 VC10-4 50:50 @ 2.7 lpm Download
FD50-45-0-N-44 45 VC10-4 50:50 @ 3.8 lpm Download

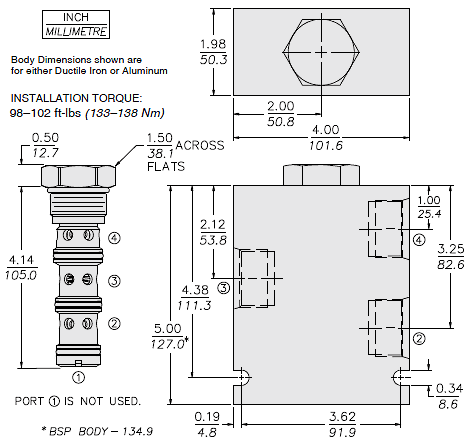

FD56-45-0-N-44 197 VC16-4 50:50 @ 9.8 lpm Download

Shuttle Valve Ball Type

Part Number Schematic  Flow Rate (L/min) Cavity/Port Size  Data Sheet

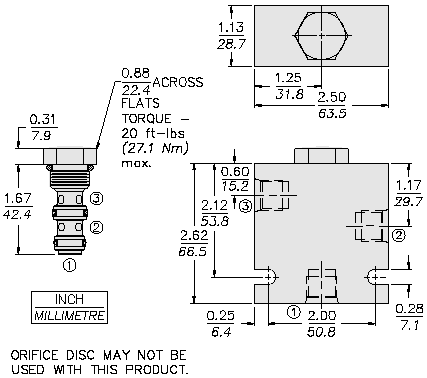

LS08-30-0-N LS04-B30 19 VC08-3 Download

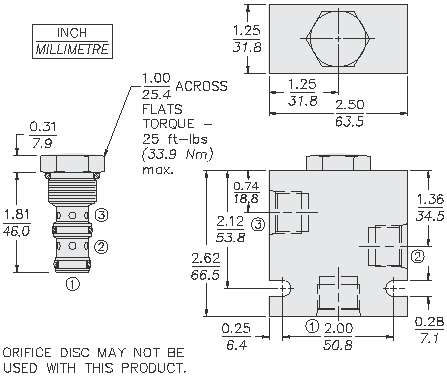

LS10-30-0-N  30.2 VC10-3 Download

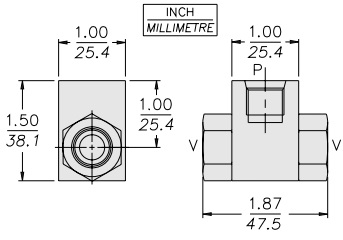

LSV1-6T-N lsv1_220517 19 9/16″ UNO Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • NV10-21E-0-N

    Brand: HydraForce
    List Price: $109.00 ex. GSTOur Price: $76.30 ex. GST
  • NV10-21T-0-N

    Brand: HydraForce
    List Price: $97.00 ex. GSTOur Price: $67.90 ex. GST
  • FC10-20A-0-N

    Brand: HydraForce
    List Price: $102.00 ex. GSTOur Price: $71.40 ex. GST
  • FD50-45-0-N-33

    Brand: HydraForce
    List Price: $170.00 ex. GSTOur Price: $119.00 ex. GST
  • FD50-45-0-N-44

    Brand: HydraForce
    List Price: $170.00 ex. GSTOur Price: $119.00 ex. GST
  • FD56-45-0-N-44

    Brand: HydraForce
    List Price: $363.00 ex. GSTOur Price: $254.10 ex. GST
  • NV08-20A-0-N

    Brand: HydraForce
    List Price: $81.00 ex. GSTOur Price: $56.70 ex. GST
  • NV10-20A-0-N

    Brand: HydraForce
    List Price: $88.00 ex. GSTOur Price: $61.60 ex. GST
  • NV12-20A-0-N

    Brand: HydraForce
    List Price: $154.00 ex. GSTOur Price: $107.80 ex. GST
