FMM-050 Series

MP Filtri
Sale!
MP Filtri

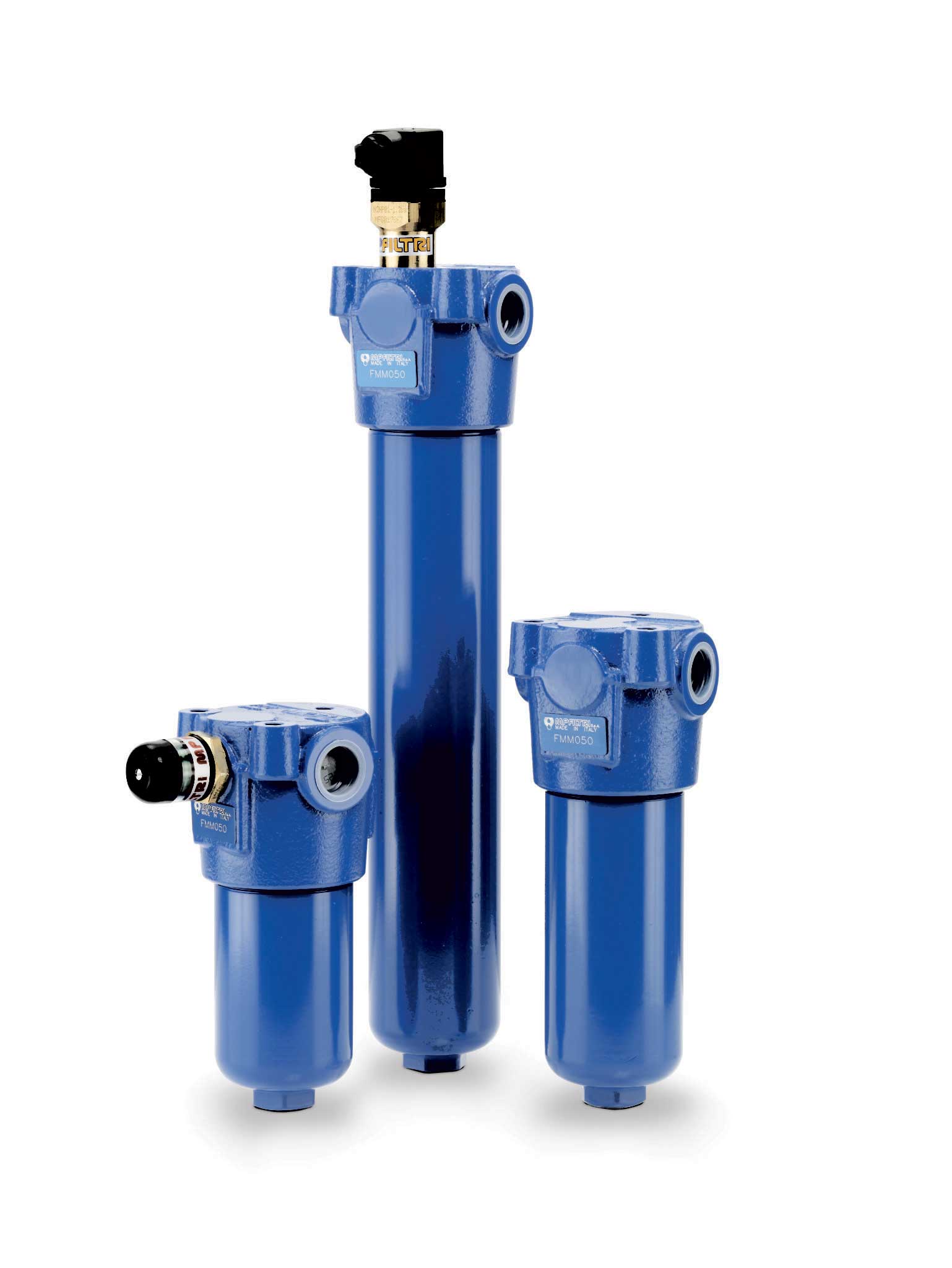

Filters for mounting in-line. Flow rates to 145 l/min. Working pressure 280 bar.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

Part Number Flow Rate (l/min) Options Seals Port Size Indicator
FMM0502BACT2 45 – 140 B = Bypass 6 bar A = BUNA C = 1/2″ BSP T2 = PLUG (std)
FMM0504BADT2 75 – 145 B = Bypass 6 bar A = BUNA D = 3/4″ BSP T2 = PLUG (std)



Element Part Number

Part Number Flow Rate (l/min) Element Type Suits Filter Housings Collapse Rating Beta Ratio
HP0502A10AN 87 10u ABS Microfibre FMM0502 20 bar bx © > 1000
HP0504A10AN 118 10u ABS Microfibre FMM0504 20 bar bx © > 1000

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 1.5 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • FMM0504BADT2

    Brand: MP Filtri
    List Price: $285.00 ex. GSTOur Price: $228.00 ex. GST
  • HP0502A10AN

    Brand: MP Filtri
    List Price: $89.00 ex. GSTOur Price: $71.20 ex. GST
  • HP0504A10AN

    Brand: MP Filtri
    List Price: $140.00 ex. GSTOur Price: $112.00 ex. GST
