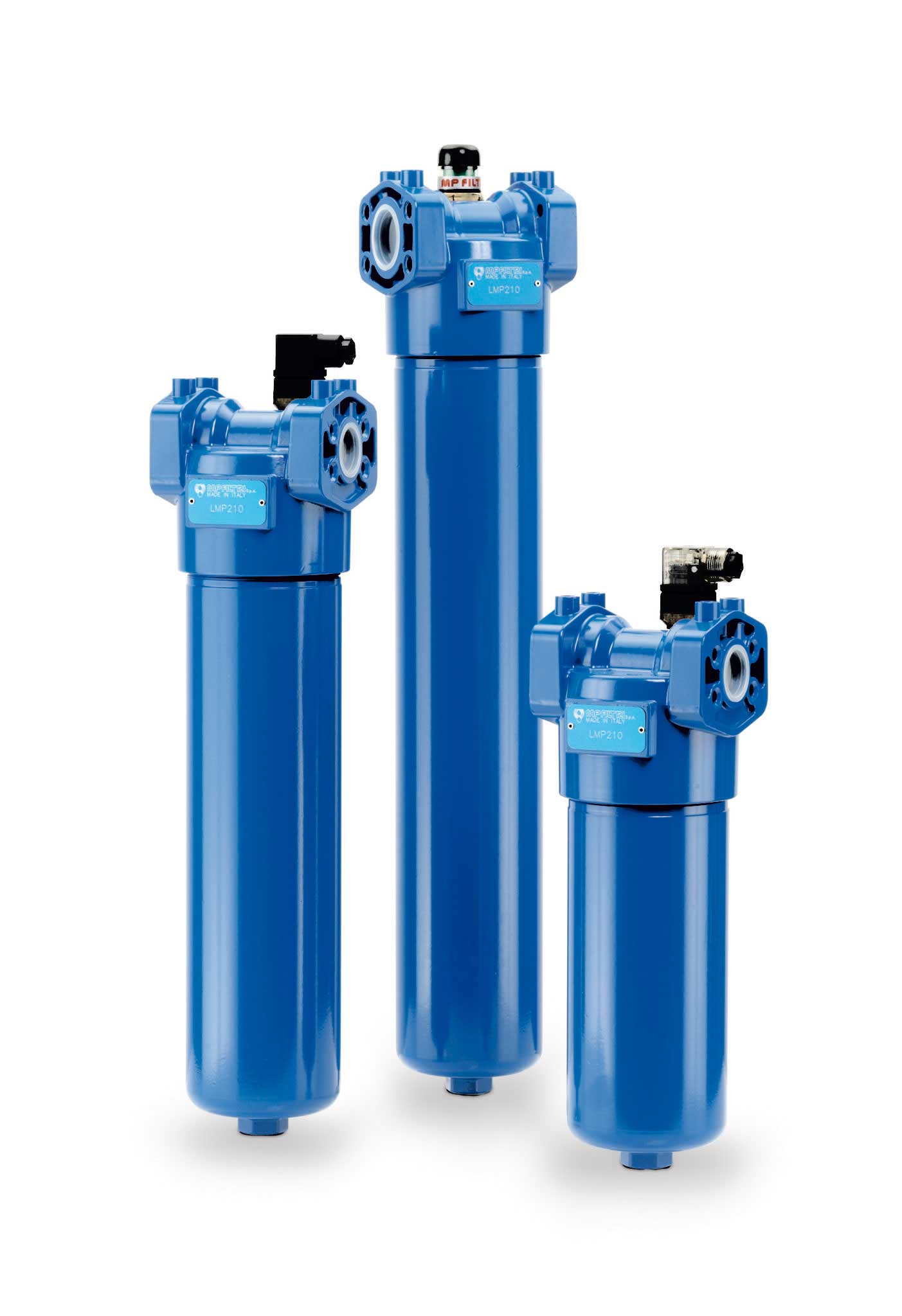

LMP-210 Series

MP Filtri
Sale!
MP Filtri

Filters for mounting in-line. Flow rate to 270 l/min. Working pressure 60 bar.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

Part Number  Flow Rate (l/min) Bowl Length Options Seals Port Size Indicator
LMP2101BAG1T2 98 – 250 1  B = Bypass 3.5 bar A = BUNA G1 = 1″ BSP T2 = PLUG (std)
LMP2102BAG2T2 140 – 255 2  B = Bypass 3.5 bar A = BUNA G2 = 1-1/4″ BSP T2 = PLUG (std)
LMP2103BAG3T2 190 – 268 3  B = Bypass 3.5 bar A = BUNA G3 = 1-1/2″ BSP T2 = PLUG (std)

Element Part Number

Part Number Flow Rate (l/min) Element Type Suits Filter Seals Collapse Rating Beta Ratio
CU2101A03AN 98 3u ABS microfibre LMP2101 A = Buna N = 20 bar bx © > 1000
CU2101A10AN 175 10u ABS microfibre LMP2101 A = Buna N = 20 bar bx © > 1000
CU2101P10AN 245 10u NOM paper LMP2101 A = Buna N = 20 bar NOMINAL
CU2101P25AN 250 25u NOM paper LMP2101 A = Buna N = 20 bar NOMINAL
CU2102A03AN 140 3u ABS microfibre LMP2102 A = Buna N = 20 bar bx © > 1000
CU2102A10AN 205 10u ABS microfibre LMP2102 A = Buna N = 20 bar bx © > 1000
CU2102M25 270 25u NOM wire mesh LMP2102 A = Buna N = 20 bar NOMINAL
CU2102P10AN 250 10u NOM paper LMP2102 A = Buna N = 20 bar NOMINAL
CU2102P25AN 255 25u NOM paper LMP2102 A = Buna N = 20 bar NOMINAL
CU2103A03AN 190 3u ABS microfibre LMP2103 A = Buna N = 20 bar bx © > 1000
CU2103A10AN 235 10u ABS microfibre LMP2103 A = Buna N = 20 bar bx © > 1000
CU2103P10AN 260 10u NOM paper LMP2103 A = Buna N = 20 bar NOMINAL
CU2103P25AN 268 25u NOM paper LMP2103 A = Buna N = 20 bar NOMINAL

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.6 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • LMP2101BAG1T2

    Brand: MP Filtri
    List Price: $382.00 ex. GSTOur Price: $305.60 ex. GST
  • LMP2102BAG2T2

    Brand: MP Filtri
    List Price: $399.00 ex. GSTOur Price: $319.20 ex. GST
  • LMP2103BAG3T2

    Brand: MP Filtri
    List Price: $475.00 ex. GSTOur Price: $380.00 ex. GST
  • CU2101A03AN

    Brand: MP Filtri
    List Price: $167.00 ex. GSTOur Price: $133.60 ex. GST
  • CU2101A10AN

    Brand: MP Filtri
    List Price: $152.00 ex. GSTOur Price: $121.60 ex. GST
  • CU2101P25AN

    Brand: MP Filtri
    List Price: $107.00 ex. GSTOur Price: $85.60 ex. GST
  • CU2102A03AN

    Brand: MP Filtri
    List Price: $225.00 ex. GSTOur Price: $180.00 ex. GST
  • CU2102A10AN

    Brand: MP Filtri
    List Price: $225.00 ex. GSTOur Price: $180.00 ex. GST
  • CU2102M25

    Brand: MP Filtri
    List Price: $341.00 ex. GSTOur Price: $272.80 ex. GST
  • CU2102P10AN

    Brand: MP Filtri
    List Price: $129.00 ex. GSTOur Price: $103.20 ex. GST
  • CU2102P25AN

    Brand: MP Filtri
    List Price: $129.00 ex. GSTOur Price: $103.20 ex. GST
  • CU2103A03AN

    Brand: MP Filtri
    List Price: $361.00 ex. GSTOur Price: $288.80 ex. GST
  • CU2103P10AN

    Brand: MP Filtri
    List Price: $210.00 ex. GSTOur Price: $168.00 ex. GST
  • CU2103P25AN

    Brand: MP Filtri
    List Price: $210.00 ex. GSTOur Price: $168.00 ex. GST
