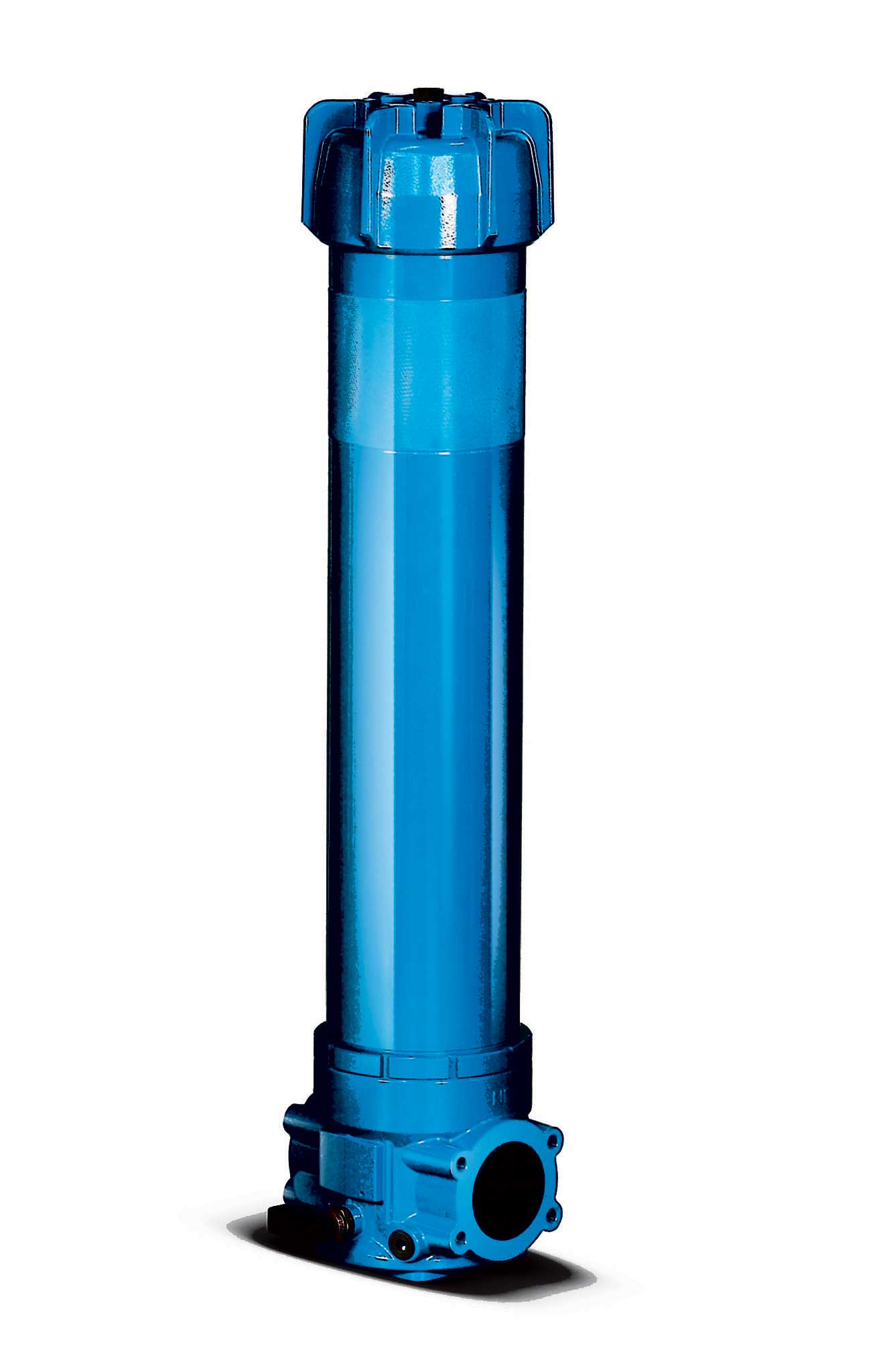

LMP-950 Series

MP Filtri
Sale!
MP Filtri

Filters for mounting in-line. Flow rate up to 1400 l/min. Working pressure 30 bar.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

 Part Number Flow Rate (l/min) Bowl Length Options Seals Port Size Indicator
LMP9502BAF1T2 550 – 800 2 B = Bypass 3.5 bar A = BUNA F1 = 3″ SAE FLANGE T2 = PLUG (std)
LMP9503BAF3T2 1000 – 1400 3 B = Bypass 3.5 bar A = BUNA F3 = 4″ SAE FLANGE T2 = PLUG (std)

Element Part Number

 Part Number Flow Rate (l/min) Element Type Suits Filter Collapse Rating Beta Ratio
CU9502A10AN 800 10u ABS microfibre LMP9502 N = 20 bar bx © > 1000
CU9503A10AN 1400 10u ABS microfibre LMP9503 N = 20 bar bx © > 1000

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.6 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • LMP9502BAF1T2

    Brand: MP Filtri
    List Price: $4400.00 ex. GSTOur Price: $3520.00 ex. GST
  • LMP9503BAF3T2

    Brand: MP Filtri
    List Price: $4650.00 ex. GSTOur Price: $3720.00 ex. GST
  • CU9502A10AN

    Brand: MP Filtri
    List Price: $903.00 ex. GSTOur Price: $722.40 ex. GST
  • CU9503A10AN

    Brand: MP Filtri
    List Price: $1655.00 ex. GSTOur Price: $1324.00 ex. GST
