MPF Series

MP Filtri
Sale!
mpf-series-filter
MP Filtri

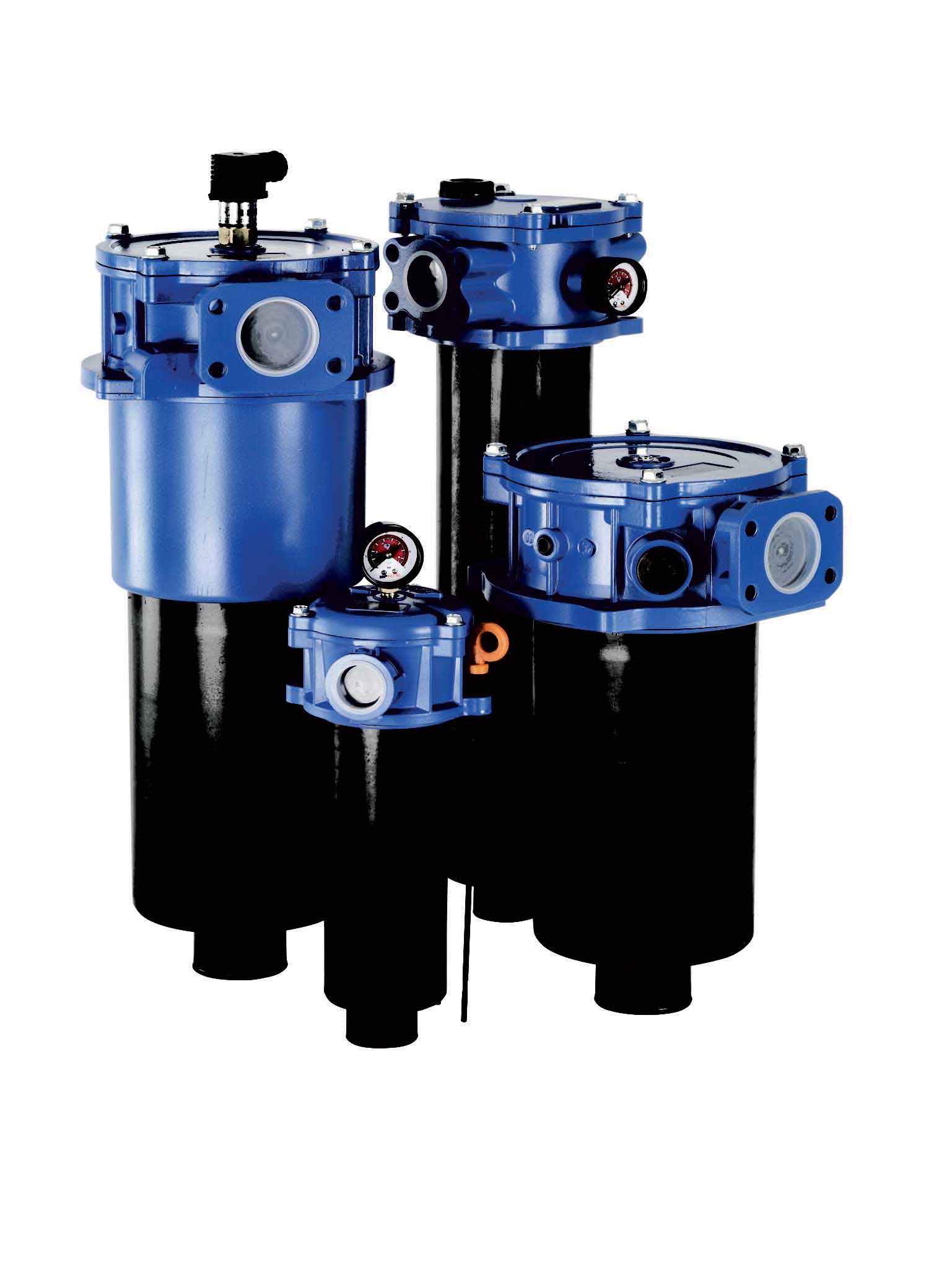

Tank mounting semi-immersed filter. Flow rates up to 500 l/min. Working pressure 8 bar.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

Part Number Flow Rate (l/min) Mount Type Seals Port Size Options Indicator
MPF0301AG1BT 10 – 33 2 bolt A = BUNA G1 = 1/2″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1001AG1BT 28 – 75 2 bolt A = BUNA G1 = 1/2″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1001AG2BT 28 – 75 2 bolt A = BUNA G2 = 3/4″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1001AG3BT 35 – 190 2 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1002AG2BT 35 – 190 2 bolt A = BUNA G2 = 3/4″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1002AG3BT 35 – 190 2 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1042AG2BT 35 – 190 4 bolt A = BUNA G2 = 3/4″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1042AG3BT 45 – 220 4 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1003AG3BT 100 – 340 2 bolt A = BUNA G3 = 1″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1811AG1BT 125 – 295 4 bolt A = BUNA G1 = 1-1/4″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF1841AG1BT 170 – 450 4 bolt A = BUNA G1 = 1-1/4″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF4002AG2BT 220 – 500 4 bolt A = BUNA G2 = 1-1/2″ BSP B = Bypass 1.75 bar T = PLUG (std)
MPF4003AG3BT 250 – 800 4 bolt A = BUNA G3 = 2″ BSP B = Bypass 1.75 bar T = PLUG (std)

Element Part Number

Part Number Flow Rate (l/min) Element type Suits Filter housings Collapse Rating Seals Beta Ratio
MF0301A25HB 35 25u ABS Microfibre MPF0301 10 bar BUNA bx © > 200
MF0301P10NB 33 10u Nom Paper MPF0301 3 bar BUNA NOMINAL
MF0301P25NB 44 25u Nom Paper MPF0301 3 bar BUNA NOMINAL
MF1001A10HB 35 10u ABS Microfibre MPF1001 10 bar BUNA bx © > 200
MF1001P10NB 55 10u Nom Paper MPF1001 3 bar BUNA NOMINAL
MF1001P25NB 95 25u Nom Paper MPF1001 3 bar BUNA NOMINAL
MF1002A10HB 50 10u ABS Microfibre MPF1002 / MPF1042 10 bar BUNA bx © > 200
MF1002A25HB 140 25u ABS Microfibre MPF1002 / MPF1042 10 bar BUNA bx © > 200
MF1002P10NB 100 10u Nom Paper MPF1002 / MPF1042 3 bar BUNA NOMINAL
MF1002P25NB 190 25u Nom Paper MPF1002 / MPF1042 3 bar BUNA NOMINAL
MF1003A10HB 75 10u ABS Microfibre MPF1003 10 bar BUNA bx © > 200
MF1003P10NB 125 10u Nom Paper MPF1003 3 bar BUNA NOMINAL
MF1003P25NB 220 25u Nom Paper MPF1003 3 bar BUNA NOMINAL
MF1801A10HB 150 10u ABS Microfibre MPF1801 / MPF1841 10 bar BUNA bx © > 200
MF1801P10NB 190 10u Nom Paper MPF1801 / MPF1841 3 bar BUNA NOMINAL
MF1801P25NB 340 25u Nom Paper MPF1801 / MPF1841 3 bar BUNA NOMINAL
MF4002A10HB 260 10u ABS Microfibre MPF4002 10 bar BUNA bx © > 200
MF4002A25HB 450 25u ABS Microfibre MPF4002 10 bar BUNA bx © > 200
MF4002P10NB 320 10u Nom Paper MPF4002 3 bar BUNA NOMINAL
MF4003P10NB 420 10u Nom Paper MPF4003 3 bar BUNA NOMINAL
MF0202P10NB 27 10u Nom Paper MPF0202 10 bar BUNA NOMINAL

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.5 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • MPF0301AG1BT

    Brand: MP Filtri
    List Price: $65.00 ex. GSTOur Price: $52.00 ex. GST
  • MPF1001AG1BT

    Brand: MP Filtri
    List Price: $83.00 ex. GSTOur Price: $66.40 ex. GST
  • MPF1001AG2BT

    Brand: MP Filtri
    List Price: $65.00 ex. GSTOur Price: $52.00 ex. GST
  • MPF1001AG3BT

    Brand: MP Filtri
    List Price: $83.00 ex. GSTOur Price: $66.40 ex. GST
  • MPF1002AG2BT

    Brand: MP Filtri
    List Price: $84.00 ex. GSTOur Price: $67.20 ex. GST
  • MPF1002AG3BT

    Brand: MP Filtri
    List Price: $84.00 ex. GSTOur Price: $67.20 ex. GST
  • MPF1003AG3BT

    Brand: MP Filtri
    List Price: $90.00 ex. GSTOur Price: $72.00 ex. GST
  • MPF1042AG2BT

    Brand: MP Filtri
    List Price: $75.00 ex. GSTOur Price: $60.00 ex. GST
  • MPF1811AG1BT

    Brand: MP Filtri
    List Price: $169.00 ex. GSTOur Price: $135.20 ex. GST
  • MPF4003AG3BT

    Brand: MP Filtri
    List Price: $288.00 ex. GSTOur Price: $230.40 ex. GST
  • MF0301A25HB

    Brand: MP Filtri
    List Price: $55.00 ex. GSTOur Price: $44.00 ex. GST
  • MF0301P10NB

    Brand: MP Filtri
    List Price: $28.00 ex. GSTOur Price: $22.40 ex. GST
  • MF0301P25NB

    Brand: MP Filtri
    List Price: $28.00 ex. GSTOur Price: $22.40 ex. GST
  • MF1001A10HB

    Brand: MP Filtri
    List Price: $77.00 ex. GSTOur Price: $61.60 ex. GST
  • MF1001P10NB

    Brand: MP Filtri
    List Price: $34.00 ex. GSTOur Price: $27.20 ex. GST
  • MF1001P25NB

    Brand: MP Filtri
    List Price: $34.00 ex. GSTOur Price: $27.20 ex. GST
  • MF1002A10HB

    Brand: MP Filtri
    List Price: $99.00 ex. GSTOur Price: $79.20 ex. GST
  • MF1002A25HB

    Brand: MP Filtri
    List Price: $82.00 ex. GSTOur Price: $65.60 ex. GST
  • MF1002P10NB

    Brand: MP Filtri
    List Price: $38.00 ex. GSTOur Price: $30.40 ex. GST
  • MF1002P25NB

    Brand: MP Filtri
    List Price: $38.00 ex. GSTOur Price: $30.40 ex. GST
  • MF1003A10HB

    Brand: MP Filtri
    List Price: $185.00 ex. GSTOur Price: $148.00 ex. GST
  • MF1003P10NB

    Brand: MP Filtri
    List Price: $53.00 ex. GSTOur Price: $42.40 ex. GST
  • MF1003P25NB

    Brand: MP Filtri
    List Price: $53.00 ex. GSTOur Price: $42.40 ex. GST
  • MF1801A10HB

    Brand: MP Filtri
    List Price: $249.00 ex. GSTOur Price: $199.20 ex. GST
  • MF1801P10NB

    Brand: MP Filtri
    List Price: $54.00 ex. GSTOur Price: $43.20 ex. GST
  • MF1801P25NB

    Brand: MP Filtri
    List Price: $54.00 ex. GSTOur Price: $43.20 ex. GST
  • MF4002A10HB

    Brand: MP Filtri
    List Price: $328.00 ex. GSTOur Price: $262.40 ex. GST
  • MF4002P10NB

    Brand: MP Filtri
    List Price: $78.00 ex. GSTOur Price: $62.40 ex. GST
  • MF4003P10NB

    Brand: MP Filtri
    List Price: $91.00 ex. GSTOur Price: $72.80 ex. GST
  • MF0202P10NB

    Brand: MP Filtri
    List Price: $30.00 ex. GSTOur Price: $24.00 ex. GST
