MPS Series

MP Filtri
Sale!
MP Filtri

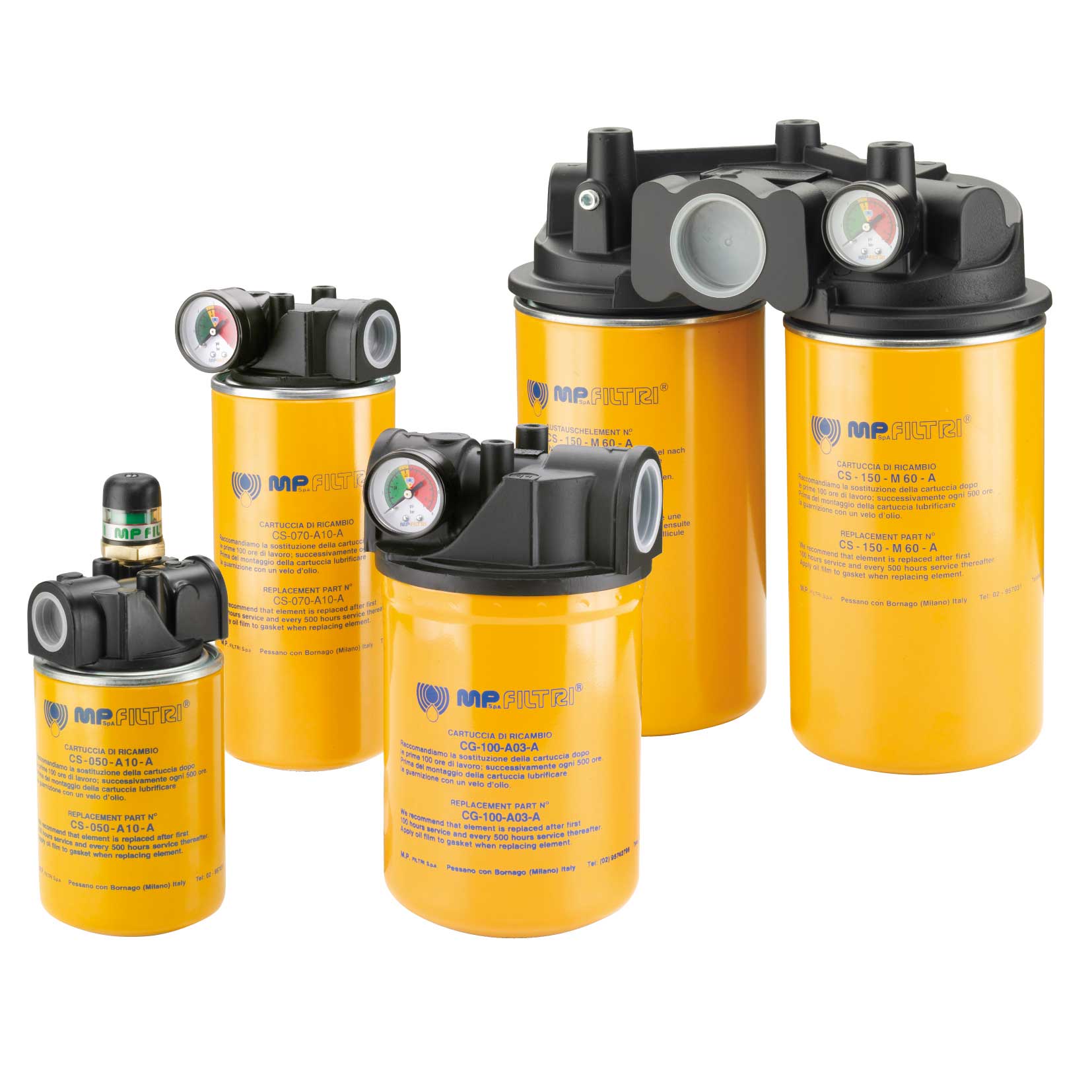

Filters for mounting in-line and on the tank. Flow rates to 310 l/min. Working pressure 12 bar.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

Part Number Flow Rate (l/min) Bypass Options Port Size Post Size Indicator
MPS050RG1T 40 – 55 1.75 bar W / Bypass & indicator port on return  3/4″ BSP 3/4″ BSP T = plug std.
MPS050RU1T 40 – 55 1.75 bar W / Bypass & indicator port on return  3/4″ BSP 1″ UNF T = plug std.
MPS050SG1T 9 – 24 0.3 bar W / Bypass & indicator port on suction  3/4″ BSP 3/4″ BSP T = plug std.
MPS050SU1T 9 – 24 0.3 bar W / Bypass & indicator port on suction  3/4″ BSP 1″ UNF T = plug std.
MPS100RG1T 75 – 140 1.75 bar W / Bypass & indicator port on return 1-1/4″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post T = plug std.
MPS100SG1T 16 – 65 0.3 bar W / Bypass & indicator port on suction 1-1/4″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post T = plug std.
MPS101RG1T 75 – 130 1.75 bar W / Bypass & indicator port on return 1-1/4″ BSP 1-1/4″ BSP T = plug std.
MPS200RG1T 130 – 290 1.75 bar W / Bypass & indicator port on return 1-1/2″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post T = plug std.
MPS200SG1T 30 – 120 0.3 bar W / Bypass & indicator port on suction 1-1/2″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post T = plug std.
MPS300RG1T 130 – 290 1.75 bar W / Bypass & indicator port on return 1-1/2″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post T = plug std.
MPS300SG1T 30 – 120 0.3 bar W / Bypass & indicator port on suction 1-1/2″ BSP 1-1/4″ BSP & 1-1/2″ UNF Dual Post T = plug std.

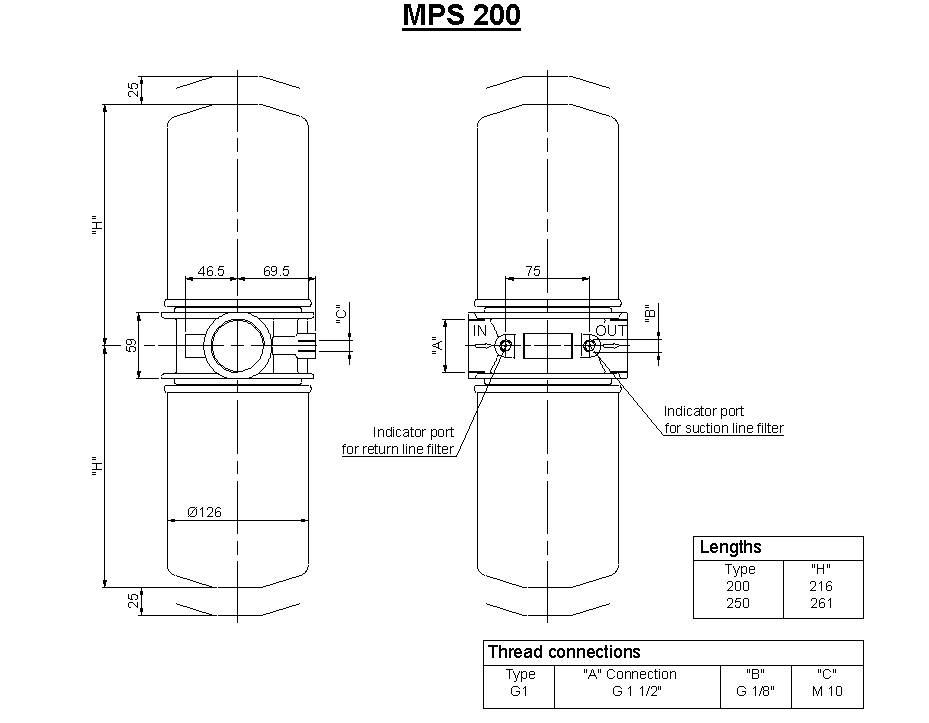

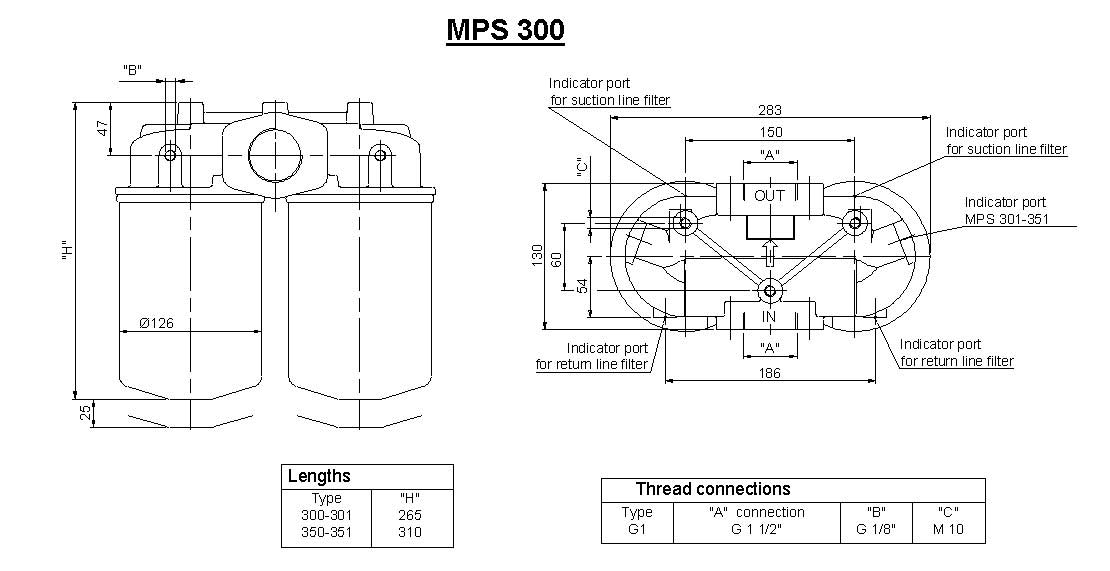

NB: MPS-200 and MPS-300 housings require two spin on cans.



Element Part Number

Part Number Return Flow Rate (l/min) Suction Flow Rate (l/min) Element Type Suits Filter Housings
CG050A03A 40 9 3u ABS Microfibre MPS050RU1T & MPS050SU1T
CG050P10A 55 16 10u Nom Paper MPS050RU1T & MPS050SU1T
CG050P25A 65 18 25u Nom Paper MPS050RU1T & MPS050SU1T
CG070P10A 58 18 10u Nom Paper MPS071RG1T
CG070P25A 68 20 25u Nom Paper MPS071RG1T
CG100A03A 75 16 3u ABS Microfibre MPS 100, 150, 200 & 300
CG100P10A 130 35 10u Nom Paper MPS 100, 150, 200 & 300
CG100P25A 160 50 25u Nom Paper MPS 100, 150, 200 & 300
CG150M90A N/A 68 90u Nom Wire Mesh MPS 100, 150, 200 & 300
CG150P10A 150 40 10u Nom Paper MPS 100, 150, 200 & 300
CG150P25A 195 45 25u Nom Paper MPS 100, 150, 200 & 300
CS050A03A 40 9 3u ABS Microfibre MPS050RG1T & MPS050CG1T & MPS050SG1T
CS050A10A 48 14 10u ABS Microfibre MPS050RG1T & MPS050CG1T & MPS050SG1T
CS050P10A 55 16 10u Nom Paper MPS050RG1T & MPS050CG1T & MPS050SG1T
CS050P25A 65 18 25u Nom Paper MPS050RG1T & MPS050CG1T & MPS050SG1T
CS100A10A 110 25 10u ABS Microfibre MPS 100, 150, 200 & 300
CS100M90A N/A 65 90u Nom Wire Mesh MPS 100, 150, 200 & 300
CS100P10A 130 35 10u Nom Paper MPS 100, 150, 200 & 300
CS100P25A 160 50 25u Nom Paper MPS 100, 150, 200 & 300
CS150M60A N/A 68 60u Nom Wire Mesh MPS 100, 150, 200 & 300
CS150M90A 50 68 90u Nom Wire Mesh MPS 100, 150, 200 & 300
CS150P10A 150 40 10u Nom Paper MPS 100, 150, 200 & 300
CS150P25A  150 40  25u Nom Paper MPS 100, 150, 200 & 300
CW150P10A 150 N/A 10u Nom Paper MPS 100, 150, 200 & 300

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.4 bar for return filters and 8 Kpa for suction filters.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • MPS050RG1T

    Brand: MP Filtri
    List Price: $54.00 ex. GSTOur Price: $43.20 ex. GST
  • MPS050RU1T

    Brand: MP Filtri
    List Price: $54.00 ex. GSTOur Price: $43.20 ex. GST
  • MPS050SG1T

    Brand: MP Filtri
    List Price: $55.00 ex. GSTOur Price: $44.00 ex. GST
  • MPS050SU1T

    Brand: MP Filtri
    List Price: $55.00 ex. GSTOur Price: $44.00 ex. GST
  • MPS100RG1T

    Brand: MP Filtri
    List Price: $86.00 ex. GSTOur Price: $68.80 ex. GST
  • MPS100SG1T

    Brand: MP Filtri
    List Price: $86.00 ex. GSTOur Price: $68.80 ex. GST
  • MPS101RG1T

    Brand: MP Filtri
    List Price: $97.00 ex. GSTOur Price: $77.60 ex. GST
  • MPS200RG1T

    Brand: MP Filtri
    List Price: $193.00 ex. GSTOur Price: $154.40 ex. GST
  • MPS200SG1T

    Brand: MP Filtri
    List Price: $195.00 ex. GSTOur Price: $156.00 ex. GST
  • MPS300RG1T

    Brand: MP Filtri
    List Price: $376.00 ex. GSTOur Price: $300.80 ex. GST
  • CG050A03A

    Brand: MP Filtri
    List Price: $109.00 ex. GSTOur Price: $87.20 ex. GST
  • CG050P10A

    Brand: MP Filtri
    List Price: $29.00 ex. GSTOur Price: $23.20 ex. GST
  • CG050P25A

    Brand: MP Filtri
    List Price: $29.00 ex. GSTOur Price: $23.20 ex. GST
  • CG070P10A

    Brand: MP Filtri
    List Price: $40.00 ex. GSTOur Price: $32.00 ex. GST
  • CG070P25A

    Brand: MP Filtri
    List Price: $40.00 ex. GSTOur Price: $32.00 ex. GST
  • CG100A03A

    Brand: MP Filtri
    List Price: $168.00 ex. GSTOur Price: $134.40 ex. GST
  • CG100P25A

    Brand: MP Filtri
    List Price: $55.00 ex. GSTOur Price: $44.00 ex. GST
  • CG150M90A

    Brand: MP Filtri
    List Price: $178.00 ex. GSTOur Price: $142.40 ex. GST
  • CG150P10A

    Brand: MP Filtri
    List Price: $80.00 ex. GSTOur Price: $64.00 ex. GST
  • CG150P25A

    Brand: MP Filtri
    List Price: $80.00 ex. GSTOur Price: $64.00 ex. GST
  • CS050A03A

    Brand: MP Filtri
    List Price: $109.00 ex. GSTOur Price: $87.20 ex. GST
  • CS050A10A

    Brand: MP Filtri
    List Price: $65.00 ex. GSTOur Price: $52.00 ex. GST
  • CS050P10A

    Brand: MP Filtri
    List Price: $35.00 ex. GSTOur Price: $28.00 ex. GST
  • CS050P25A

    Brand: MP Filtri
    List Price: $35.00 ex. GSTOur Price: $28.00 ex. GST
  • CS100A10A

    Brand: MP Filtri
    List Price: $115.00 ex. GSTOur Price: $92.00 ex. GST
  • CS100M90A

    Brand: MP Filtri
    List Price: $114.00 ex. GSTOur Price: $91.20 ex. GST
  • CS100P10A

    Brand: MP Filtri
    List Price: $57.00 ex. GSTOur Price: $45.60 ex. GST
  • CS100P25A

    Brand: MP Filtri
    List Price: $57.00 ex. GSTOur Price: $45.60 ex. GST
  • CS150M60A

    Brand: MP Filtri
    List Price: $207.00 ex. GSTOur Price: $165.60 ex. GST
  • CS150M90A

    Brand: MP Filtri
    List Price: $167.00 ex. GSTOur Price: $133.60 ex. GST
  • CS150P10A

    Brand: MP Filtri
    List Price: $82.00 ex. GSTOur Price: $65.60 ex. GST
  • CS150P25A

    Brand: MP Filtri
    List Price: $82.00 ex. GSTOur Price: $65.60 ex. GST
  • CW150P10A

    Brand: MP Filtri
    List Price: $226.00 ex. GSTOur Price: $180.80 ex. GST
