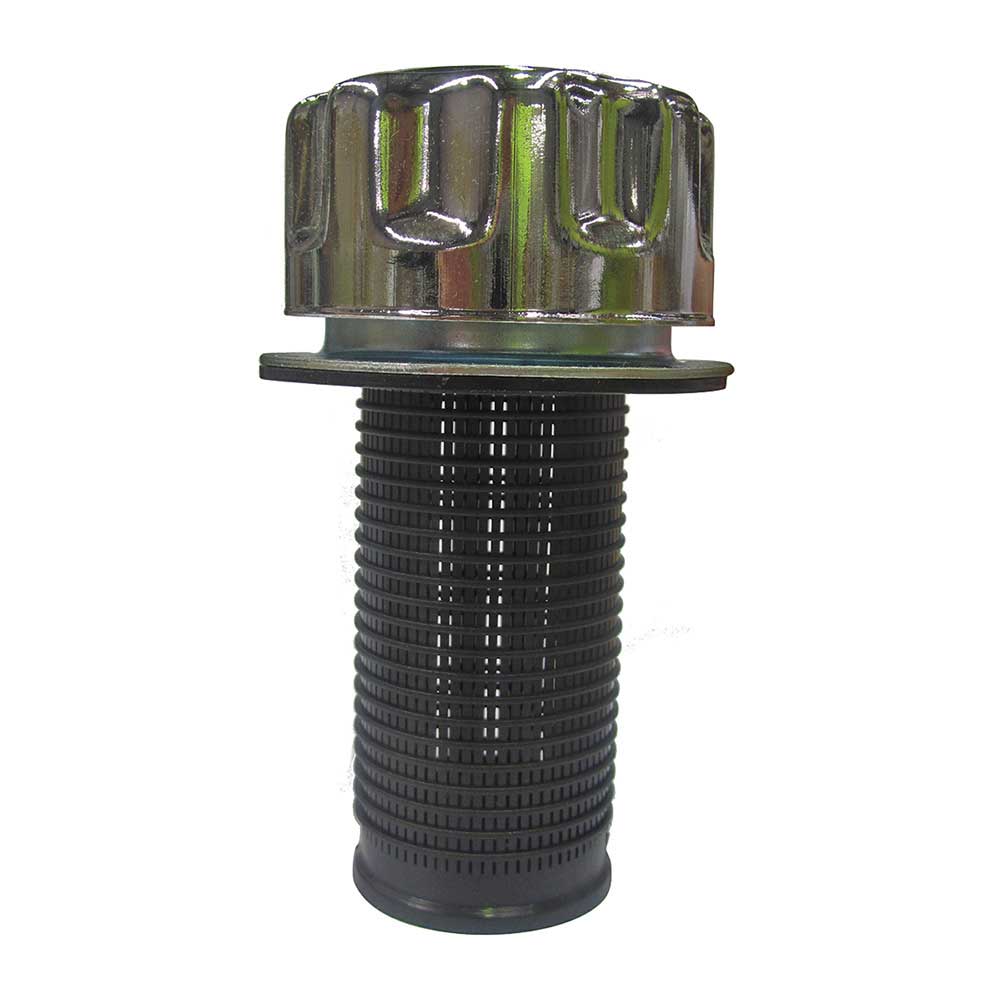

PBB Series (Chrome Plated Steel Cap)

The Hydraulic Warehouse
Sale!
TheHydraulicWarehouse_hires

This device is similar to a conventional breather, but it incorporates a relief valve set at 5 or 10 PSI and a vacuum breaker and filter. When the level rises, air is compressed rather than being expelled. Thereafter, changing fluid levels are accommodated by the changing size of the air bubble in the reservoir, instead of breathing by as much as 90% to 95%, increasing the life of the breather filter by a factor of 10. They are recommended systems that are expected to operate in extremely dusty environments.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

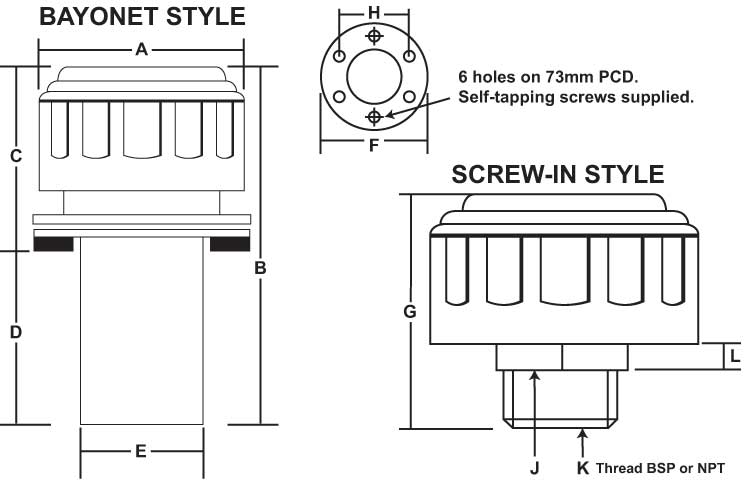

Part Number Micron Rating Airflow (m³/min) Mounting Detail Relief Valve Setting
PBB-10-10N 10 0.42 6 holes on 73mm PCD 10 psi
PBB10-5N 10 0.42 6 holes on 73mm PCD 5 psi

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • PBB-10-10N

    Brand: The Hydraulic Warehouse
    List Price: $67.00 ex. GSTOur Price: $46.90 ex. GST
  • PBB10-5N

    Brand: The Hydraulic Warehouse
    List Price: $67.00 ex. GSTOur Price: $46.90 ex. GST
