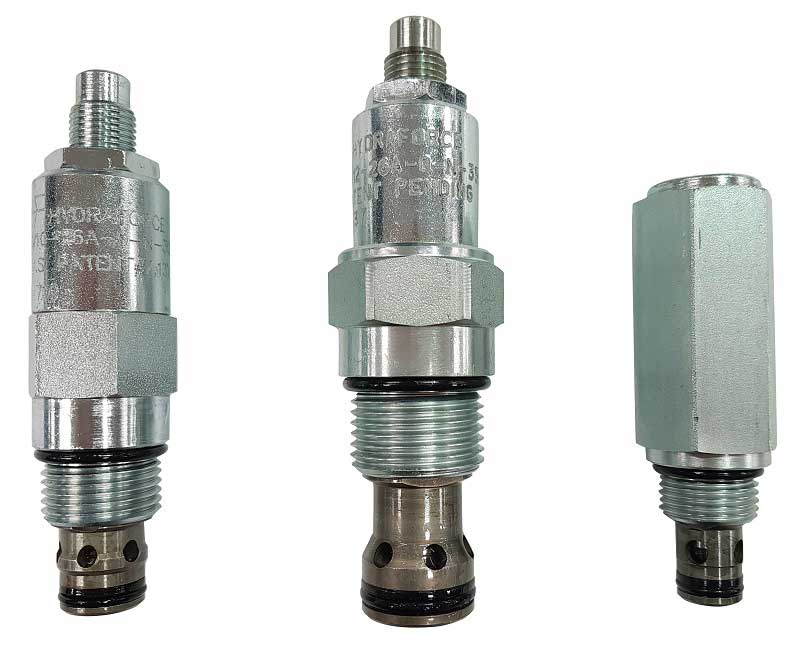

Relief Valves

HydraForce
Sale!
HF_Power Forward Logo

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Direct Acting – Poppet Type

Part Number Schematic  Flow Rate (L/min) Cavity   Pressure Range (bar) Data Sheet

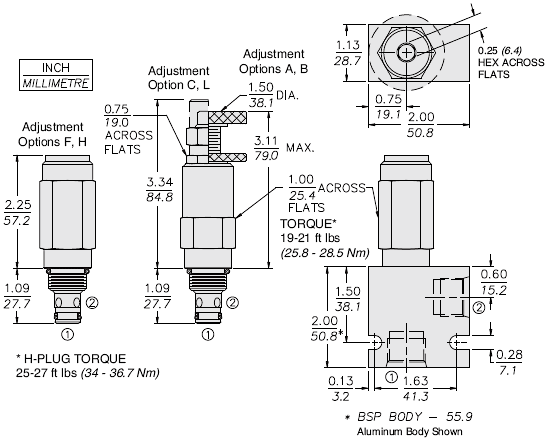

RV08-20A-0-N-09 RV08-20 22 VC08-2 7-76  Download
RV08-20A-0-N-33 22 VC08-2 17-248  Download
RV08-20F-0-N-33/20 22 VC08-2 140  Download

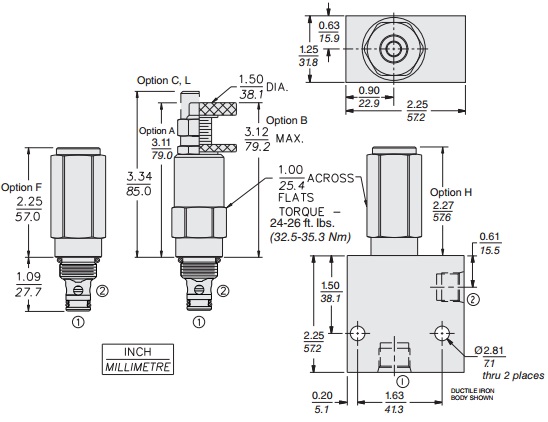

RV58-20A-0-N-46 22 VC08-2 28-317  Download

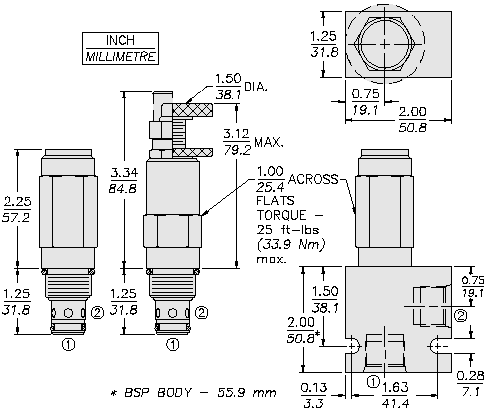

RV10-20A-0-N-06 38 VC10-2 3-41  Download
RV10-20A-0-N-12 38 VC10-2 10-82  Download
RV10-20A-0-N-33 38 VC10-2 17-227  Download

Differential Area – Poppet Type

Part Number Schematic  Flow Rate (L/min) Cavity   Pressure Range (bar) Data Sheet

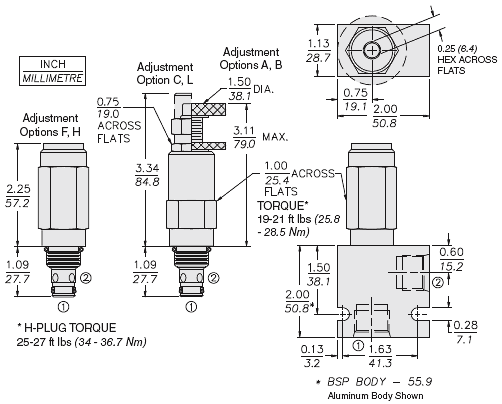

RV08-22A-0-N-26 RV08-22 30 VC08-2 17-220 Download

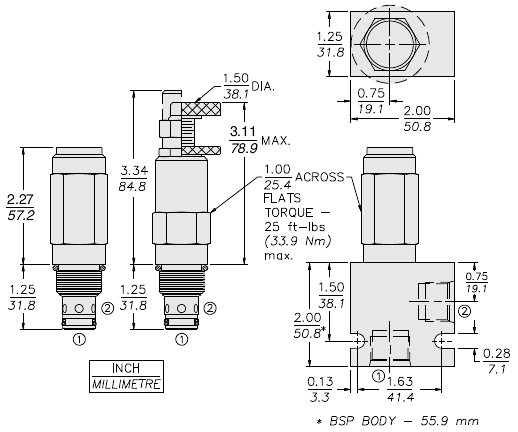

RV10-22A-0-N-25 114 VC10-2 17-165 Download
RV10-22A-0-N-35 114 VC10-2 17-241 Download
RV10-22H-0-N-35 114 VC10-2 17-241 Download

Pilot Operated, Spool

Part Number Schematic  Flow Rate (L/min) Cavity   Pressure Range (bar) Data Sheet

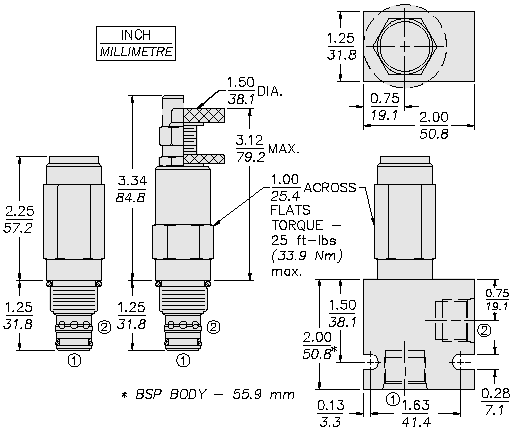

RV10-26A-0-N-30 RV08-20 113 VC10-2 27-207 Download

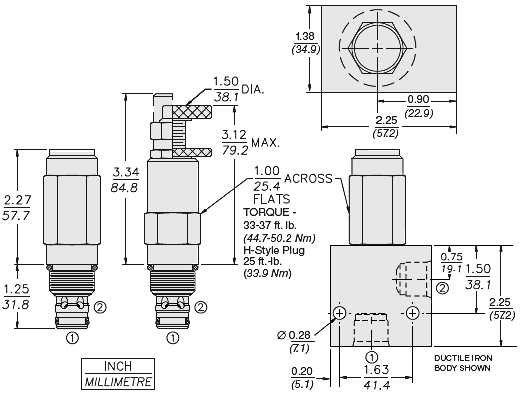

RV50-26A-0-P-50 113 VC10-2 20-344 Download

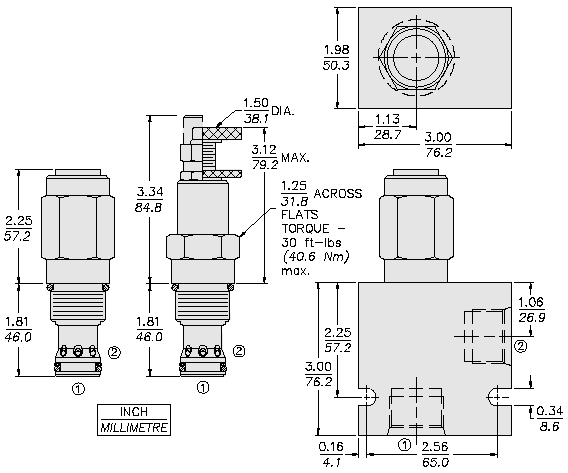

RV12-26A-0-N-04 113 VC10-2 7-28 Download
RV12-26A-0-N-35 113 VC10-2 20-241 Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • RV12-26A-0-N-04

    Brand: HydraForce
    List Price: $234.00 ex. GSTOur Price: $163.80 ex. GST
  • RV08-20A-0-N-09

    Brand: HydraForce
    List Price: $118.00 ex. GSTOur Price: $82.60 ex. GST
  • RV08-20A-0-N-33

    Brand: HydraForce
    List Price: $118.00 ex. GSTOur Price: $82.60 ex. GST
  • RV08-20F-0-N-33/20

    Brand: HydraForce
    List Price: $116.00 ex. GSTOur Price: $81.20 ex. GST
  • RV58-20A-0-N-46

    Brand: HydraForce
    List Price: $130.00 ex. GSTOur Price: $91.00 ex. GST
  • RV10-20A-0-N-06

    Brand: HydraForce
    List Price: $130.00 ex. GSTOur Price: $91.00 ex. GST
  • RV10-20A-0-N-12

    Brand: HydraForce
    List Price: $130.00 ex. GSTOur Price: $91.00 ex. GST
  • RV10-20A-0-N-33

    Brand: HydraForce
    List Price: $130.00 ex. GSTOur Price: $91.00 ex. GST
  • RV08-22A-0-N-26

    Brand: HydraForce
    List Price: $118.00 ex. GSTOur Price: $82.60 ex. GST
  • RV10-22A-0-N-25

    Brand: HydraForce
    List Price: $130.00 ex. GSTOur Price: $91.00 ex. GST
  • RV10-22A-0-N-35

    Brand: HydraForce
    List Price: $130.00 ex. GSTOur Price: $91.00 ex. GST
