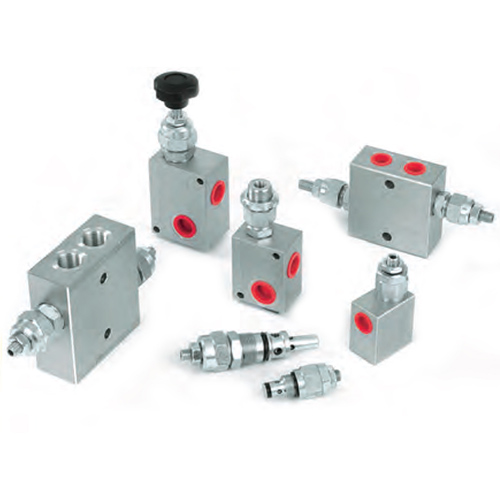

Hydraulic Relief Valves
LOGO FLUID-PRESS

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Line Mounted, Direct Acting, Guided Poppet Relief Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes
FPM-D-40-CB-P-3/8-35 reliefvalves_features_fpm-d-70-cb-p-34-20-schematic 40 80-350 210 G3/8
FPM-D-40-CB-P-1/2-20 40 50-220 220 G1/2
FPM-D-70-CB-P-1/2-20 80 80-280 280 G1/2
FPM-D-70-CB-P-3/4-20 80 80-280 280 G3/4

Line Mounted, Pilot Operated, Sliding Spool Relief Valve

Part Number Schematic Flow Rate (L/min) Adjustment Range (bar) Max Pressure (bar) Port Sizes
FPM-P-150-CB-P-3/4-20 reliefvalves_features_fpm-p-150-cb-p-34-20-schematic 150 15-250 210 G3/4



Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • FPM-D-70-CB-P-3/4-20

    Brand: Fluid-Press
    List Price: $167.00 ex. GSTOur Price: $108.55 ex. GST
  • FPM-D-70-CB-P-1/2-20

    Brand: Fluid-Press
    List Price: $167.00 ex. GSTOur Price: $108.55 ex. GST
  • FPM-D-40-CB-P-1/2-20

    Brand: Fluid-Press
    List Price: $109.00 ex. GSTOur Price: $70.85 ex. GST
  • FPM-D-40-CB-P-3/8-35

    Brand: Fluid-Press
    List Price: $109.00 ex. GSTOur Price: $70.85 ex. GST
  • FPM-P-150-CB-P-3/4-20

    Brand: Fluid-Press
    List Price: $278.00 ex. GSTOur Price: $180.70 ex. GST
