Sequence Valves

HydraForce
Sale!
HF_Power Forward Logo

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

External Pilot & Internal Drain

Part Number Schematic  Flow Rate (L/min) Cavity   Pressure Range (bar) Data Sheet

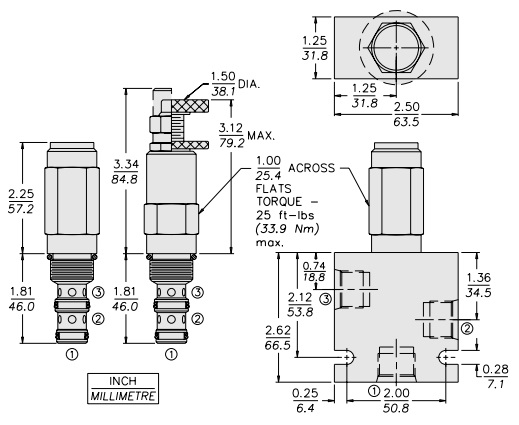

PS10-32A-0-N-08 ps10-32a-0-n-08 38 VC10-3 14-55 Download

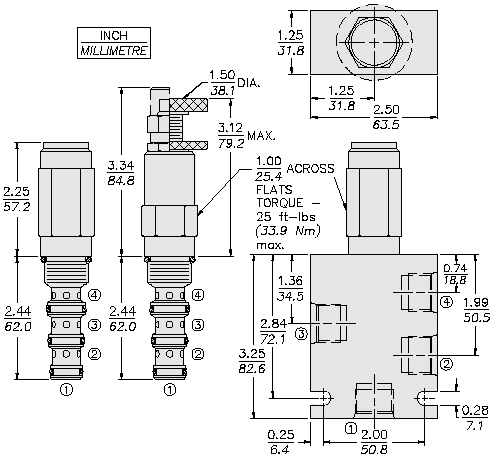

PS10-43A-0-N-22 PS10-36 30 VC10-4 15-152 Download

Pilot Operated Internal Pilot & External Drain

Part Number Schematic  Flow Rate (L/min) Cavity   Pressure Range (bar) Data Sheet

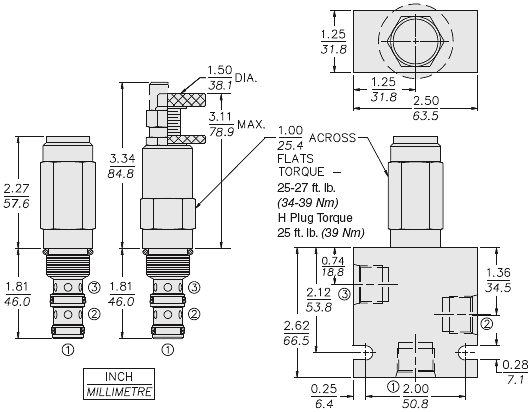

PS10-36A-0-N-30 PS10-43 57 VC10-3 28-207 Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • PS10-32A-0-N-08

    Brand: HydraForce
    List Price: $161.00 ex. GSTOur Price: $112.70 ex. GST
  • PS10-36A-0-N-30

    Brand: HydraForce
    List Price: $200.00 ex. GSTOur Price: $140.00 ex. GST
  • PS10-43A-0-N-22

    Brand: HydraForce
    List Price: $213.00 ex. GSTOur Price: $149.10 ex. GST
