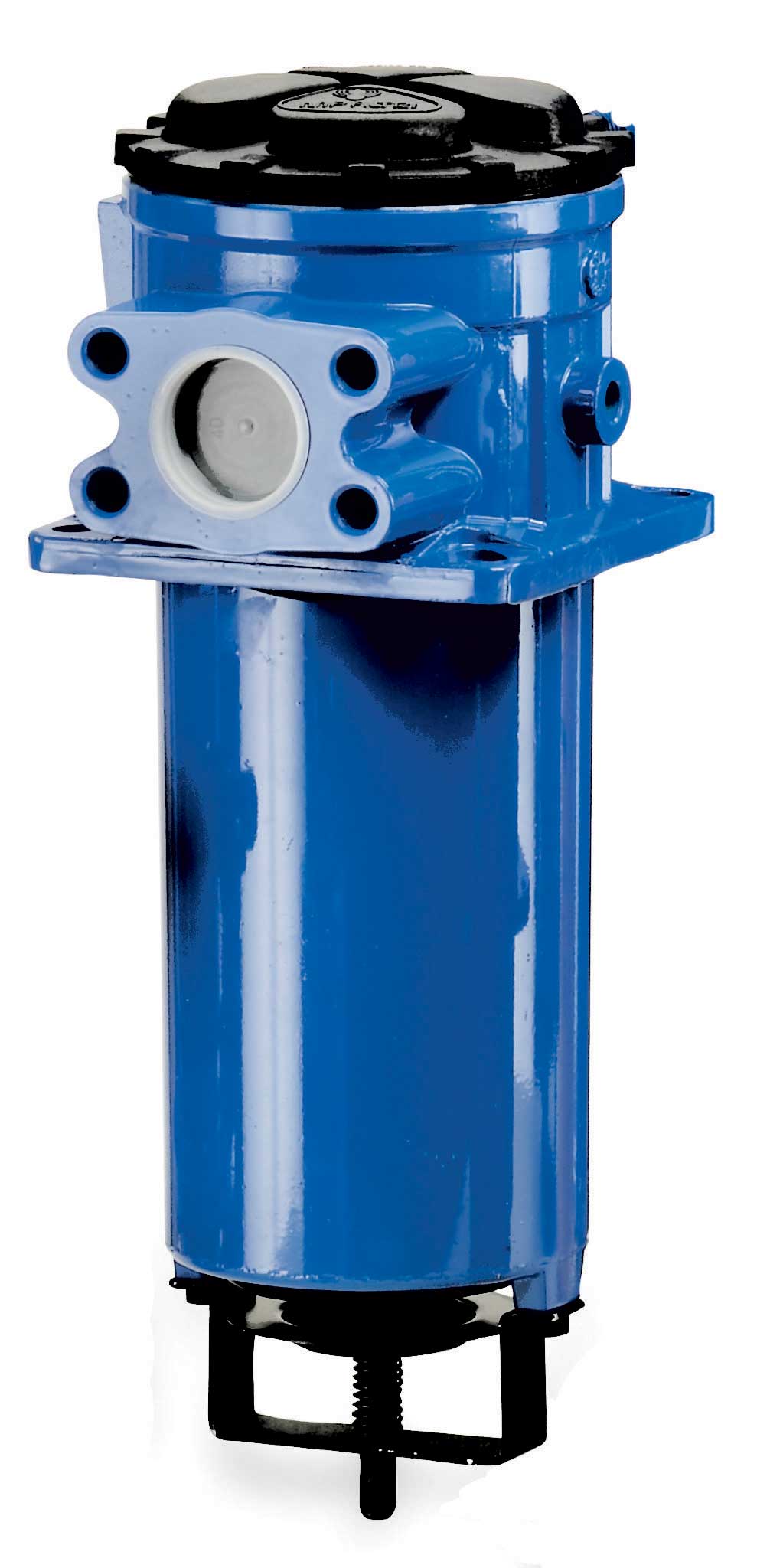

SF2-250 Series

MP Filtri
Sale!
MP Filtri

External filters, for mounting semi-immersed under the oil level. Flow rates to 150 l/min.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

Part Number Flow Rate (l/min) Seals Port Size Options Indicator
SF2250AF1QT 160 A = Buna F1 = 1-1/2″ SAE Flange  Q = W/O bypass, with magnet  T = Plug
SF2250AG1QT 160 A = Buna G1 = 1-1-2″ BSP  Q = W/O bypass, with magnet  T = Plug

Element Part Number

Part Number Micron Element Media Seals
SF250M90N 90 M = wire mesh N = Buna

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.08 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • SF2250AF1QT

    Brand: MP Filtri
    List Price: $395.00 ex. GSTOur Price: $316.00 ex. GST
  • SF2250AG1QT

    Brand: MP Filtri
    List Price: $390.00 ex. GSTOur Price: $312.00 ex. GST
  • SF250M90N

    Brand: MP Filtri
    List Price: $118.00 ex. GSTOur Price: $94.40 ex. GST
