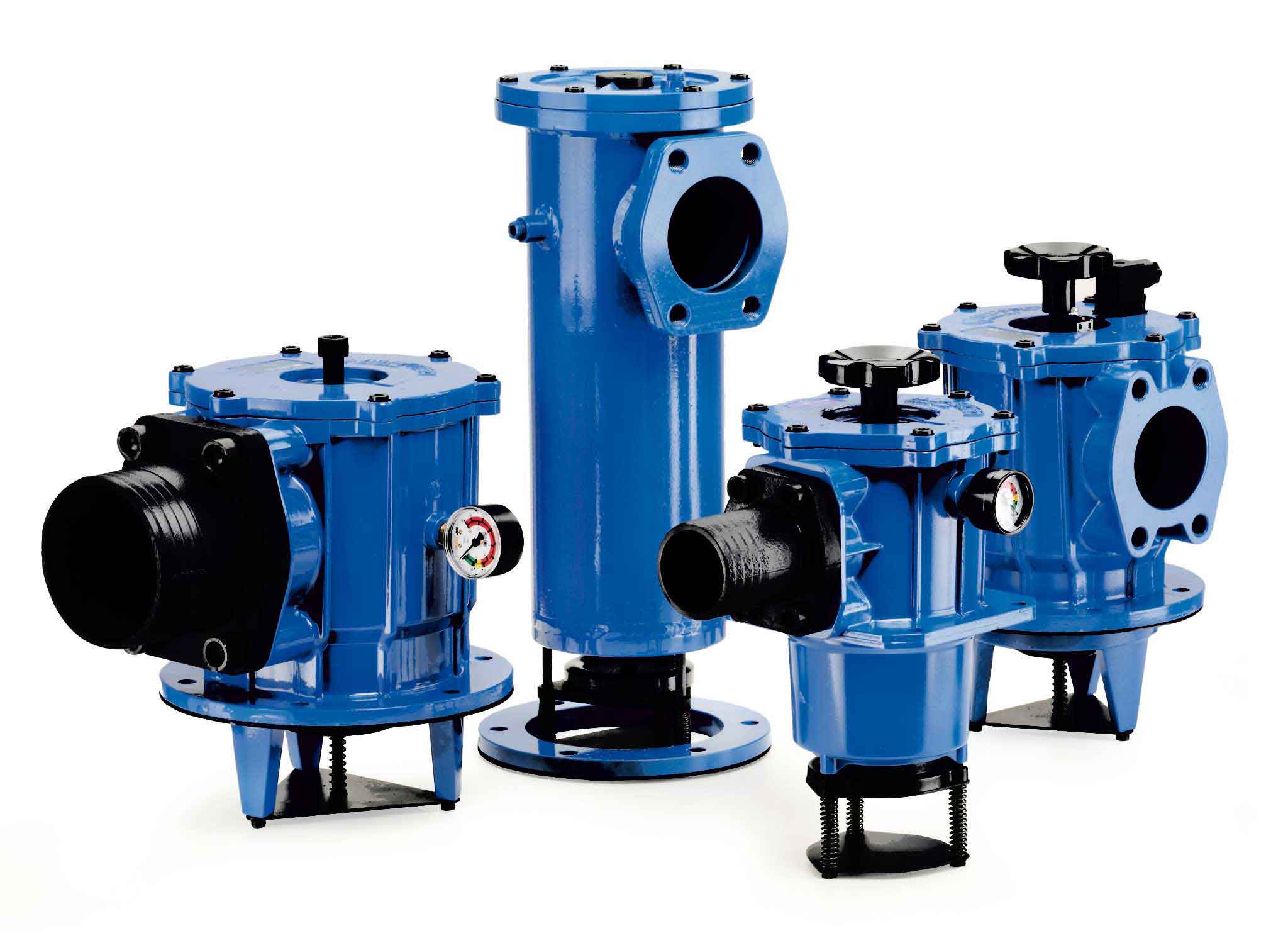

SF2-500 Series

MP Filtri
Sale!
MP Filtri

External filters, for mounting semi-immersed under the oil level. Flow rates to 850 l/min

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Filter Part Number

 Part Number  Flow Rate (l/min) Nominal Size Filter Media Port Size Options Indicator
SF2503AF1KT1 400 – 480 503 A = BUNA F1 = 3″ SAE FLANGE K = With microswitch and with steel hand wheel T1 = Plug
SF2504AF1KT1 550 – 650 504 A = BUNA F1 = 4″ SAE FLANGE K = With microswitch and with steel hand wheel T1 = Plug

Element Part Number

Part Number Flow Rate Micron Element Media Suits Filter
SF503M90 480 90 M = wire mesh SF2-503
SF504M90 650 90 M = wire mesh SF2-504
SF505M90 250 90 M = wire mesh SF2-505
SF510M90 280 90 M = wire mesh SF2-500, 501 & 510
SF540M90 800 90 M = wire mesh SF2-540

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 1.25 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • SF2503AF1KT1

    Brand: MP Filtri
    List Price: $1200.00 ex. GSTOur Price: $960.00 ex. GST
  • SF2504AF1KT1

    Brand: MP Filtri
    List Price: $1300.00 ex. GSTOur Price: $1040.00 ex. GST
  • SF503M90

    Brand: MP Filtri
    List Price: $160.00 ex. GSTOur Price: $128.00 ex. GST
  • SF504M90

    Brand: MP Filtri
    List Price: $196.00 ex. GSTOur Price: $156.80 ex. GST
  • SF505M90

    Brand: MP Filtri
    List Price: $107.00 ex. GSTOur Price: $85.60 ex. GST
  • SF510M90

    Brand: MP Filtri
    List Price: $125.00 ex. GSTOur Price: $100.00 ex. GST
  • SF540M90

    Brand: MP Filtri
    List Price: $382.00 ex. GSTOur Price: $305.60 ex. GST
