Sight Glass (SG Series)

The Hydraulic Warehouse
Sale!
TheHydraulicWarehouse_hires

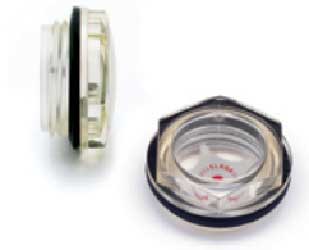

A transparent screw in style sight glass to check the oil level of a reservoir.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

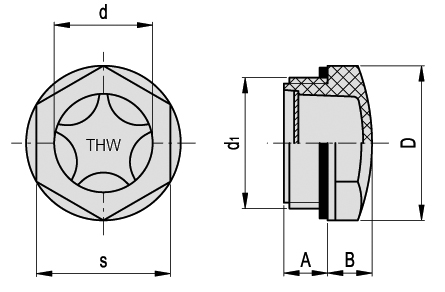

Part Number Threads Overall Diameter (mm) A/F Hex (mm)
SG04 G1/4 18 15
SG06 G3/8 22 19
SG08 G1/2 26 22
SG12 G3/4 31 27
SG16 G1 40 34
SG20 G1-1/4 47 41

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • SG04

    Brand: The Hydraulic Warehouse
    List Price: $4.00 ex. GSTOur Price: $2.80 ex. GST
  • SG06

    Brand: The Hydraulic Warehouse
    List Price: $4.00 ex. GSTOur Price: $2.80 ex. GST
  • SG08

    Brand: The Hydraulic Warehouse
    List Price: $5.00 ex. GSTOur Price: $3.50 ex. GST
  • SG12

    Brand: The Hydraulic Warehouse
    List Price: $7.00 ex. GSTOur Price: $4.90 ex. GST
  • SG16

    Brand: The Hydraulic Warehouse
    List Price: $8.00 ex. GSTOur Price: $5.60 ex. GST
  • SG20

    Brand: The Hydraulic Warehouse
    List Price: $12.00 ex. GSTOur Price: $8.40 ex. GST
