STR Series

MP Filtri
Sale!
MP Filtri

These strainers are suitable for use in the suction line, submerged in the reservoir.
These filters are particularly suitable for applications where it is necessary to protect pumps
Please Note: Suction Filters equipped with a bypass is only recommended when there is regular servicing of the machine. Otherwise the filter will bypass and you will no longer have your pump protected.

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

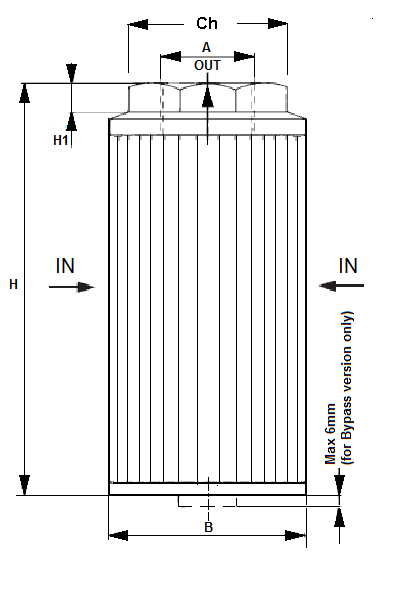

Part Number Port Size Length (mm) Dia (mm) Micron Rating Flow Rate (l/min) Weight (Kg) Bypass Valve
STR0502SG1M90 3/8″ BSP 85 50 90 24 0.16 No
STR0701SG1M90 1/2″ BSP 95 70 90 32 0.22 No
STR0702SG1M90 3/4″ BSP 95 70 90 75 0.22 No
STR0704SG1M90 1″ BSP 145 70 90 150 0.3 No
STR1001SG1M90 1-1/4″ BSP 142 99 90 180 0.47 No
STR1003SG1M90 1-1/2″ BSP 232 99 90 250 0.68 No
STR1004SG1M90 2″ BSP 232 99 90 490 0.68 No
STR1005SG1M90 1-1/2″ BSP 142 99 90 250 0.47 No
STR1401SG1M90 1-1/2″ BSP 170 136 90 250 0.84 No
STR1402SG1M90 2″ BSP 170 136 90 490 0.84 No
STR1403SG1M90 2″ BSP 270 136 90 490 1.25 No
STR1404SG1M90 2-1/2 ” BSP 270 136 90 860 1.25 No
STR1405SG1M90 3″ BSP 270 136 90 900 1.25 No
STR1406SG1M90 3″ BSP 330 136 90 900 1.3 No

NB: Flow rates are based on oil with 30cst viscosity and pressure drop of filter assembly of 0.08 bar.

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.

  • STR0701SG1M90

    Brand: MP Filtri
    List Price: $34.00 ex. GSTOur Price: $27.20 ex. GST
  • STR0702SG1M90

    Brand: MP Filtri
    List Price: $34.00 ex. GSTOur Price: $27.20 ex. GST
  • STR0704SG1M90

    Brand: MP Filtri
    List Price: $37.00 ex. GSTOur Price: $29.60 ex. GST
  • STR1001SG1M90

    Brand: MP Filtri
    List Price: $54.00 ex. GSTOur Price: $43.20 ex. GST
  • STR1003SG1M90

    Brand: MP Filtri
    List Price: $72.00 ex. GSTOur Price: $57.60 ex. GST
  • STR1004SG1M90

    Brand: MP Filtri
    List Price: $72.00 ex. GSTOur Price: $57.60 ex. GST
  • STR1005SG1M90

    Brand: MP Filtri
    List Price: $54.00 ex. GSTOur Price: $43.20 ex. GST
  • STR1401SG1M90

    Brand: MP Filtri
    List Price: $83.00 ex. GSTOur Price: $66.40 ex. GST
  • STR1402SG1M90

    Brand: MP Filtri
    List Price: $83.00 ex. GSTOur Price: $66.40 ex. GST
  • STR1404SG1M90

    Brand: MP Filtri
    List Price: $119.00 ex. GSTOur Price: $95.20 ex. GST
  • STR1405SG1M90

    Brand: MP Filtri
    List Price: $119.00 ex. GSTOur Price: $95.20 ex. GST
  • STR1406SG1M90

    Brand: MP Filtri
    List Price: $141.00 ex. GSTOur Price: $112.80 ex. GST
